Leviton 55050

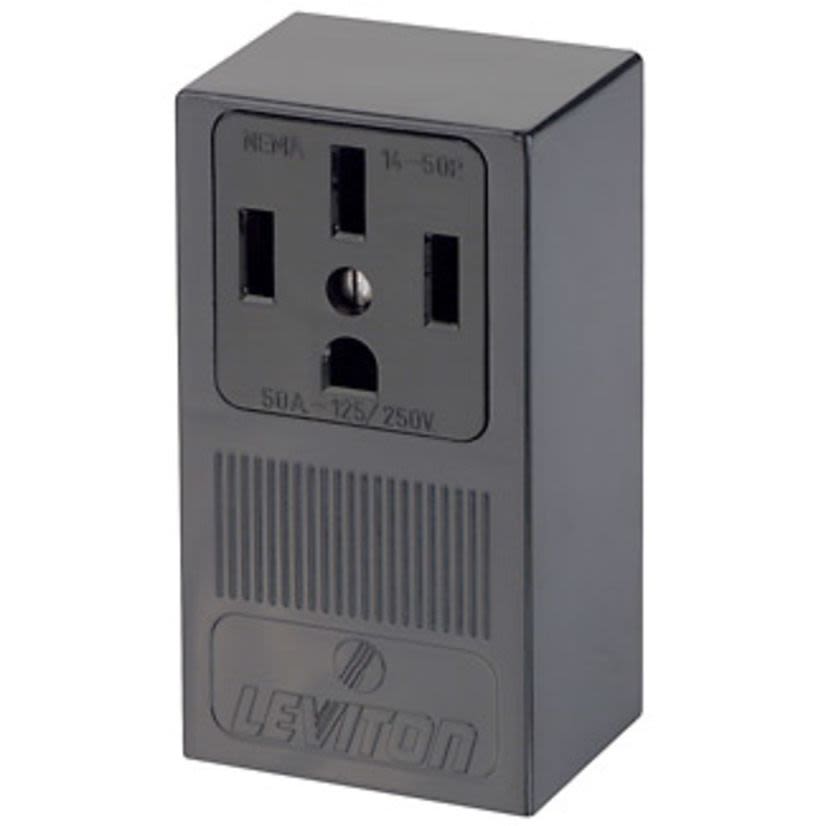

Leviton 55050 Grounding Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Leviton 55050
Leviton 55050 Grounding Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, BlackIn Stock: 27more info
|
BrandLeviton
MFG #55050
Werner Part #45624
UPC078477100257
In Stock: 27more info
|
BrandLeviton
MFG #55050
Werner Part #45624
UPC078477100257
Product Description
Leviton Straight Blade Receptacle, Grounding, 125/250 VAC, 50 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 14-50R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 4.82 in H x 2.68 in W x 24 in D Dimensions
Attributes
Documents
Features
Specifications
Warranty
Attributes
Amps50 A
ColorBlack
Country of OriginMX
Dimensions4.82 in H x 2.68 in W x 24 in D
GradeCommercial
GTIN00078477100257
Horsepower7-1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 14-50R
Number of Poles3
Number of Wires4
Package TypeEACH
SeriesGrounding
Terminal TypeSide Wire
TypeGrounding
Type / StyleGrounding
Voltage Rating125/250 V AC
Documents
Features
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or 2-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399/E13393|UL94 V-2 Flammability Rating
Warranty
10 Years Limited
