Panduit GACBJ68U

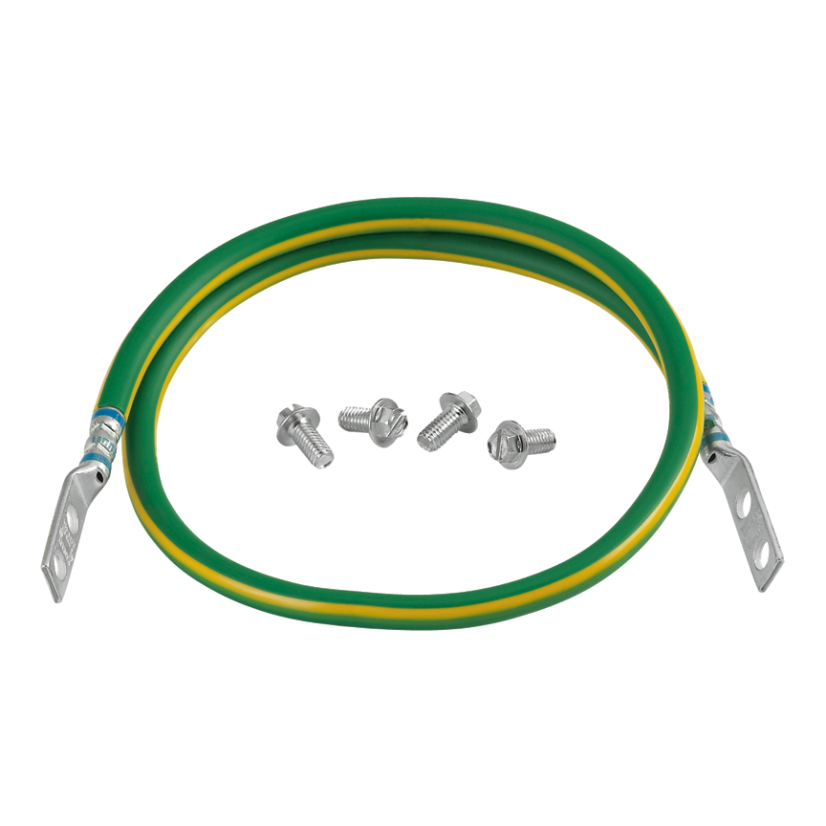

Panduit StructuredGround GACBJ68U Auxiliary Cable Bracket Jumper Kit, 6 Pieces, For Use With Pathway Section, Green/Yellow
Panduit GACBJ68U
Panduit StructuredGround GACBJ68U Auxiliary Cable Bracket Jumper Kit, 6 Pieces, For Use With Pathway Section, Green/YellowNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #GACBJ68U
Werner Part #3905443
UPC074983089772
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #GACBJ68U
Werner Part #3905443
UPC074983089772
Product Description
Panduit StructuredGround Cable Bracket Jumper Kit, Auxiliary, 6 Piece, For Use With: Pathway Section, Green/Yellow
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
ColorGreen/Yellow
Country of OriginUS
Dimensions8 in OAL
ManufacturerPanduit
MaterialCopper
Package Height1.15 IN
Package Length10.1 in
Package Volume50.11 cu-in
Package Weight0.35 lb
Package Width6.2 in
Suitable For Use WithPathway Section
TypeAuxiliary
Type / StyleAuxiliary Cable Bracket
Documents
Applications
For auxiliary cable, telecommunication and data center application
Included
6 AWG, 8 in L Jumper, (4) Mounting Screws and 0.16 oz Anti-Oxidant
Features
- Provide electrical continuity to Panduit Wyr-Grid system and most industry standard ladder rack eliminate the need to remove paint and drill hole for grounding jumper, saving labor
- Maintains a 2 in distance from grounding conductor and other cable in the pathway
- Support grounding conductor above or below pathway, enables bonding to pathway section and across pathway junction when required
- Pre-terminated on both end
- Complies with industry requirement ensuring a high level of reliability and safety
- Bonds the rack or cabinet to the (TGB)
- Factory terminated on both end with straight, two-hole, long barrel compression lug
- Bonds ladder rack, wire basket and Panduit Wyr-Grid system sections together without drilling holes
- Supports grounding conductors in the telecommunications room, allows separation of grounding conductors from other cables
- Holds upto 4 conductors in sizes upto 750 kcmil
- Bonds to all 1 and 2 in ladder rack rails
- Paint piercing teeth provide electrical continuity between cable pathway sections while minimizing debris
- Class B, copper code conductor with green and yellow insulation
Specifications
Straight Angle, 6 AWG Conductor
