BURNDY KSA500

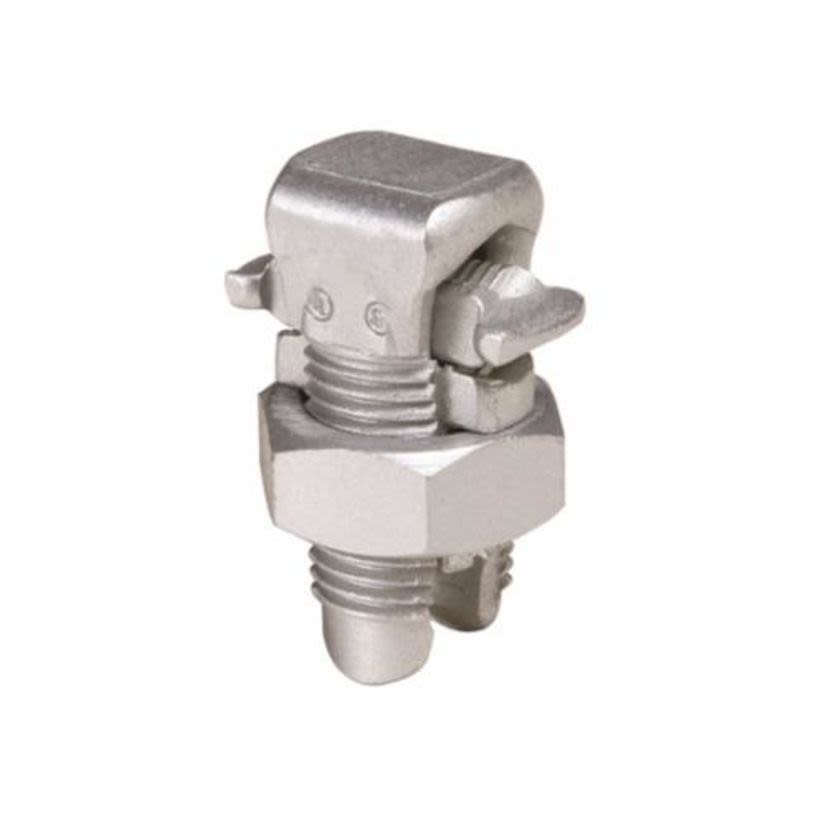

Hubbell BURNDY TRITAP™ SERVIT KSA500 Split Bolt Connector, (1) 2 AWG to 500 kcmil, 400 to 500 kcmil Conductor, 3.24 in L, Aluminum
BURNDY KSA500
Hubbell BURNDY TRITAP™ SERVIT KSA500 Split Bolt Connector, (1) 2 AWG to 500 kcmil, 400 to 500 kcmil Conductor, 3.24 in L, AluminumNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
BURNDY® TRITAP™ SERVIT® Split Bolt Connector, Series: KSA, 1 Conductors, 2 AWG to 500 kcmil, 400 to 500 kcmil Conductor, 3.24 in Length, 1-1/2 in Width, 825 in-lb Torque, Aluminum, TiN Coated
Attributes
Documents
Features
Attributes
Conductor size2 AWG to 500 kcmil, 400 to 500 kcmil
Country of OriginUnited States
FinishTin Coated
Length3.24 in
ManufacturerHubbell
MaterialAluminum
Number of Conductors1
Package TypeEACH
SeriesKSA
Torque Rating825 in-lb
Type / StyleBolt Connector
Width1-1/2 in
Documents
Features
No scratch brushing requiredNo oxide inhibitor requiredOrients the conductorProvides maximum pressure and assures a secure connection of run and tap conductorsFacilitates piercing the aluminum conductor surface oxides194 deg F temperature ratingProvides a low contact resistanceProvides equal coefficient of expansion inhibits the reformation of oxides by producing a gastight sealProvides improved retention of minimum to maximum conductor combinationsConductor type - run commercial stranded aluminum, commercial stranded and solid copper, tap - commercial stranded aluminum, commercial stranded and solid copper2 in across flats400 to 500 kcmil of aluminum run size (range) and copper stranded run (range), 2 AWG to 500 kcmil of copper tap range and aluminum tap size (range), 2 to 4/0 AWG of copper solid tap (range)500 kcmil to 2 AWG stranded of min tap size with max run size, 500 to 500 kcmil stranded of max tap size with max run size, 400 kcmil to 2 AWG compact min tap size with min run sizeHigh strength aluminum400 to 500 kcmil main/primary, 2 AWG to 500 kcmil tap/secondary
