BURNDY YGHR29C34

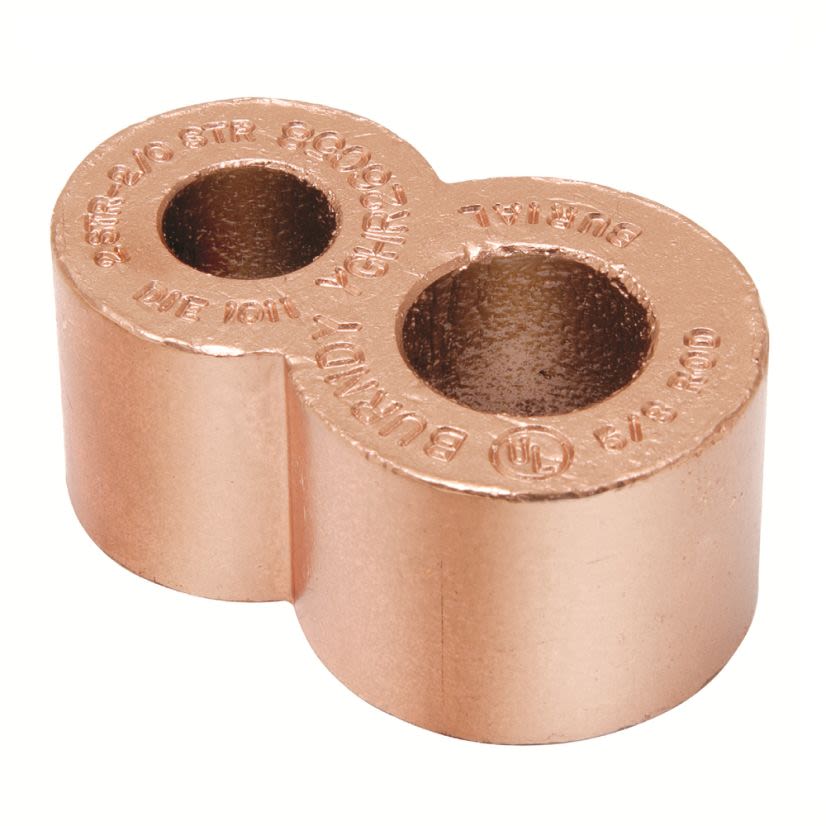

BURNDY HYGROUND HYTAIL YGHR29C34 YGHR-C Type YGHR-C High Strength Irreversible Compression Connector, 4/0 AWG Min Run/Tap, 3/4 in Rod, Figure 8 Shape
BURNDY YGHR29C34
BURNDY HYGROUND HYTAIL YGHR29C34 YGHR-C Type YGHR-C High Strength Irreversible Compression Connector, 4/0 AWG Min Run/Tap, 3/4 in Rod, Figure 8 ShapeNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
BURNDY HYGROUND HYTAIL YGHR29C34, Compression Connector, Type YGHR-C High Strength Irreversible, Series: YGHR-C, 4/0 AWG Minimum Run/Tap, 4/0 AWG to 250 kcmil Maximum Run/Tap, 3/4 in Rod, Figure 8 Shape, Copper Conductor, Specifications: 998/1012 Die Index, Unplated, 0.88 in W x 2.19 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Bolt/Rod SizeRod Size: 3/4 in
Conductor TypeCopper
Country of OriginUS
Dimensions0.88 in W x 2.19 in H
FinishUnplated
ManufacturerHubbell
MaterialCopper
Package TypeEACH
Rod Size3/4 in
SeriesYGHR-C
ShapeFigure 8
TypeType YGHR-C High Strength Irreversible
Type / StyleType YGHR-C High Strength Irreversible
Documents
Applications
For direct burial in earth and concrete
Features
- Accommodates a wide range of copper conductors to ground rod
- Prefilled with PENETROX compound and strip sealed
- High torque strength ground rod connector accepts a wide range of copper conductors to ground rod
- Tools, die set catalog number and (number of crimps) - Y35, Y39, Y750, PAT750 tool, PU998 die, (1) U1011 die, (2) HYPRESS - Y45 tool, PU998 die with PT6515 adapter, (1) S1012 die, (2) Y46 tool, PU998 die with PUADP-1 adapter, (1) P1011 die
- Acceptable for direct burial in earth and concrete
- 4/0 AWG to 250 kcmil stranded conductor size
Specifications
998/1012 Die Index
