Generac RXSW200A3

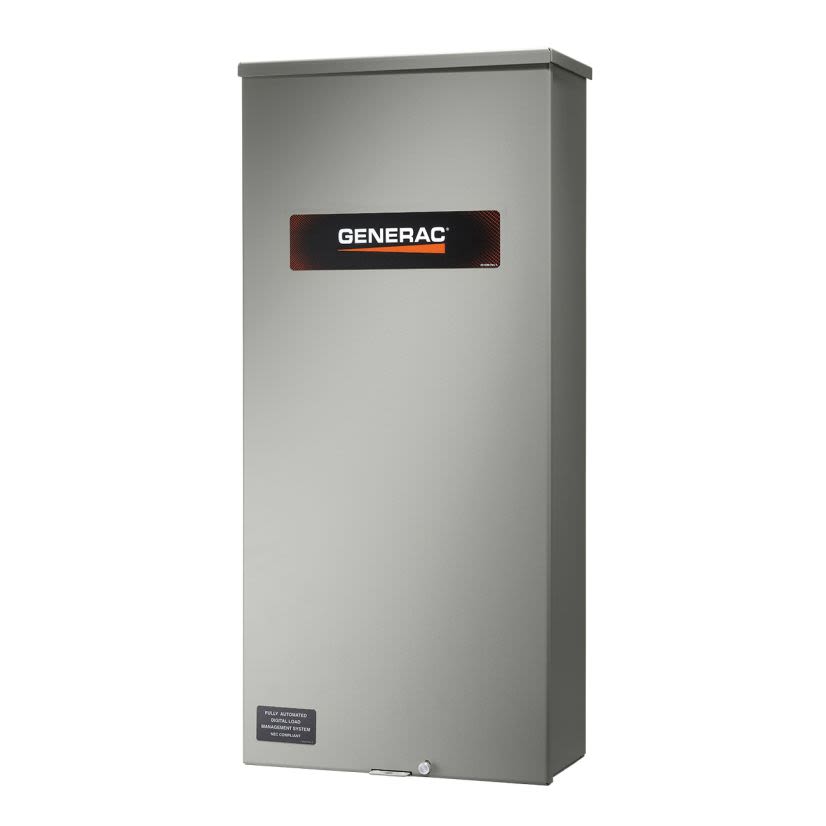

Generac RXSW200A3 Automatic Smart Transfer Switch With Power Management, 120/240 V, 200 A, 48000 W Power Rating, 1 Phase, NEMA 3R Enclosure
Generac RXSW200A3
Generac RXSW200A3 Automatic Smart Transfer Switch With Power Management, 120/240 V, 200 A, 48000 W Power Rating, 1 Phase, NEMA 3R EnclosureOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Generac Smart Transfer Switch, Automatic, Series: RXS, 120/240 V, 200 A, 48000 W, 1 ph, 13-1/2 in Width, 6.3 in Depth, 30 in Height, NEMA 3R Enclosure, Aluminum, Gray, Electrostatic Baked Powder Painted
Attributes
Documents
Features
Specifications
Warranty
Attributes
Country of OriginUS
Depth6.3 in
FinishElectrostatic Baked Powder Painted
Height30 in
Length30 in
ManufacturerGenerac Power Systems
MaterialAluminum
Package Type1/PK
SeriesRXS
TypeAutomatic
Voltage Rating120/240 V
Width13-1/2 in
Features
- Through the use of digital power technology, Generac singe-phase service rated transfer switch has the ability to manage 4 individual hvac loads with no additional hardware
- Designed for use with single phase generators that utilize the Evolution or Nexus controller
- Aluminum NEMA/UL type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
- Simplify installation with a board that combines load management and transfer switch hardware
- Decreases transfer switch complexity
- Smaller fuses integrated into the control board
- Gain even more flexibility when used in tandem with smart management module
- The smart a/c module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload)
Specifications
cULus Listed|UL Listed|PROP65: Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov
Warranty
5 years Limited
