Generac RTSD100A3

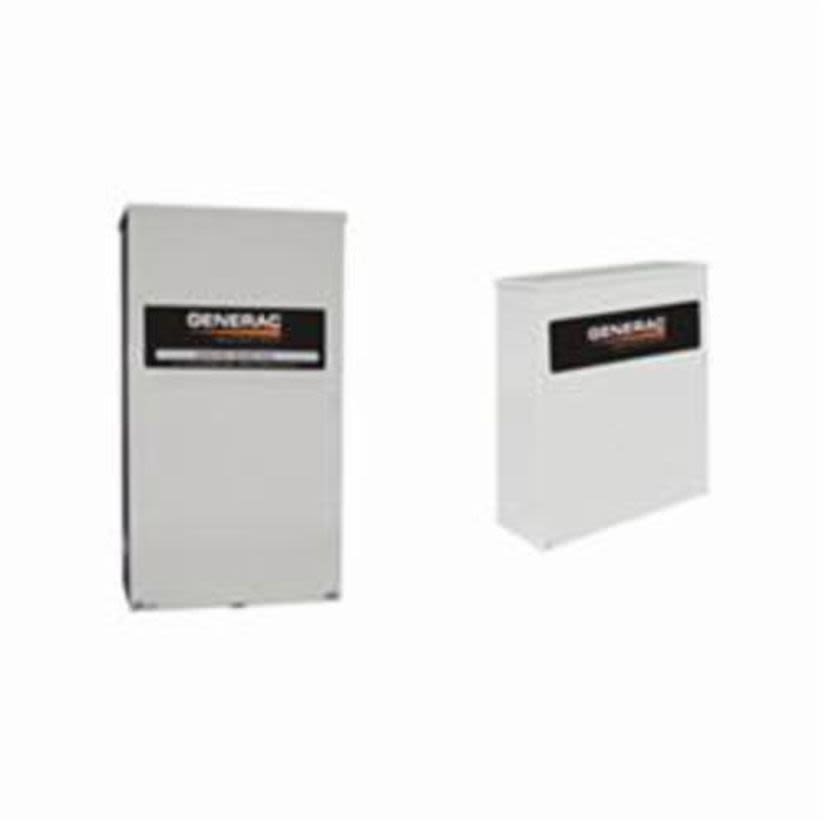

Generac RTSD100A3 Nexus Automatic Transfer Switch, 120/240 VAC, 100 A, 1 Phase, NEMA 3R
Generac RTSD100A3
Generac RTSD100A3 Nexus Automatic Transfer Switch, 120/240 VAC, 100 A, 1 Phase, NEMA 3RInventory Not Available
BrandGenerac
MFG #RTSD100A3
Werner Part #3908020
UPC696471607475
Inventory Not Available
BrandGenerac
MFG #RTSD100A3
Werner Part #3908020
UPC696471607475
Product Description
Generac Transfer Switch, Automatic, Series: Nexus, 120/240 V, 100 A, 1, 14.6 in Width, 7.09 in Depth, 20 in Height, NEMA 3R, Aluminum
Attributes
Documents
Features
Specifications
Attributes
Country of OriginUS
Depth7.09 in
Height20 in
Length20 in
ManufacturerGenerac Power Systems
MaterialAluminum
SeriesNexus
TypeAutomatic
Voltage Rating120/240 V AC
Width14.6 in
Features
- All Nexus Smart switche are housed in an aluminum NEMA/UL type 3R enclosure, with electrostatically applied and baked poenclosure
- The heavy-duty generac contactor is a UL recognized device, designed for year of service
- The control at the generator handle all the timing, sensing and exercising function
- The 400 A non-service rated switch is housed in a steel enclosure
- Through the use of Digital load Management technology (DLM), each of these switche has the capability to truly manage two air conditioning load with no additional hardware
- When used in tandem with the individual DLM modules, up to four more additional load can be intelligently managed individually
- 10000 A withstand rating
- 2/0 - #14 lug range
- Open transition service rated
- Less than 60 percent utility voltage drop-out
- 5 second engine warm-up delay
- 60 percent for 5 second standby voltage sensor
- Greater than 80 percent utility voltage pickup
- 15 second re-transfer time delay
- 60 second engine cool-down time
- The transfer switch can be operated manually without power applied
Specifications
cULus Listed|ISO 9001:2008
