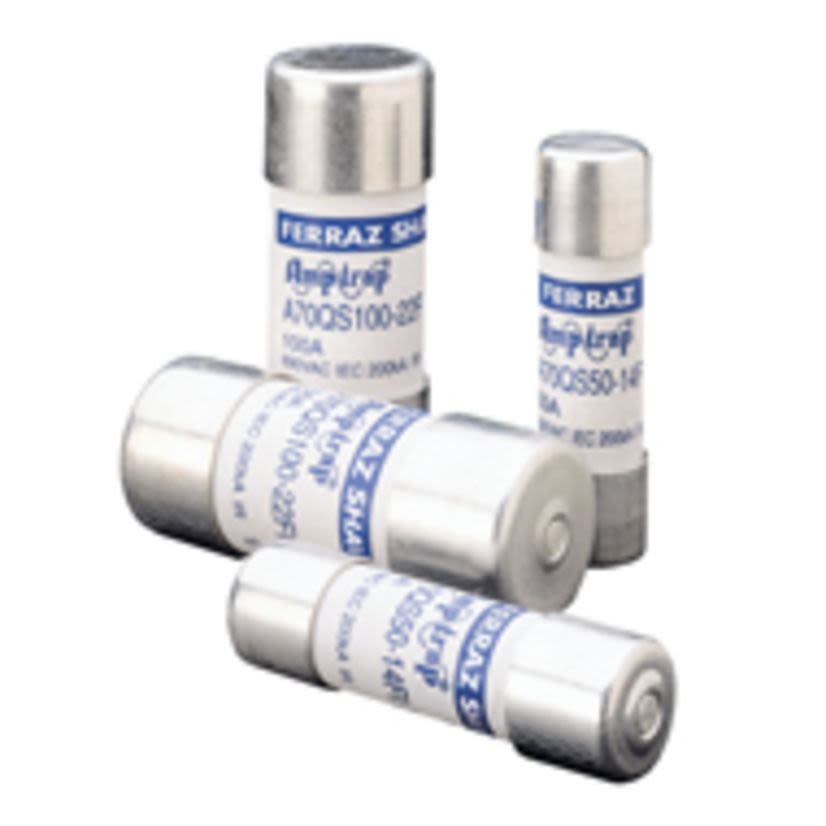

Ferraz Shawmut A70QS100-22F
Mersen AMP-TRAP A70QS100-22F High Speed Semiconductor Fuse, 100 A, 690 V AC/700 V DC, 200/100 kA Interrupt, Cylindrical Body
Ferraz Shawmut A70QS100-22F
Mersen AMP-TRAP A70QS100-22F High Speed Semiconductor Fuse, 100 A, 690 V AC/700 V DC, 200/100 kA Interrupt, Cylindrical BodyNon-stock product. Available to order - lead time may vary.
BrandFerraz Shawmut
MFG #A70QS100-22F
Werner Part #105140
UPC782001142131
Non-stock product. Available to order - lead time may vary.
BrandFerraz Shawmut
MFG #A70QS100-22F
Werner Part #105140
UPC782001142131
Product Description
Mersen AMP-TRAP Semiconductor Fuse, High Speed, Series: A70QS, Non-Rejection, 100 A, 690 V AC/700 V DC, 200/100 kA Interrupt, 2.5 ms Response, Ferrule Terminal, Clip Mounting, Cylindrical Body, Single Element, Ceramic, 22 mm Dia x 58 mm L Body
Attributes
Applications
Features
Attributes
Body Size22 mm Dia x 58 mm L
Body TypeCylindrical
Country of OriginTN
ElementSingle
Interrupt Rating200/100 kA
ManufacturerMERSEN
MaterialCeramic
Mounting TypeClip
Package TypeEACH
Rejection/Non-RejectionNon-Rejection
Response Time2.5 ms
SeriesA70QS
Terminal TypeFerrule
Type / StyleHigh Speed
Voltage Rating690 V AC/700 V DC
Applications
For small inverters, UPS systems, motor drives and similar 700 V or less equipment applications
Features
- International 14 x 51 mm and 22 x 58 mm sizes for worldwide acceptance
- Ferrule mount upto 100 A for design versatility
- Very low I2T for improved semiconductor protection
- Superior cycling ability for longer life on difficult cyclic loading applications
- AR characteristic for semiconductor short circuit protection
- North American round style
- Low watts loss
- Ultra compact sizes allow down sizing of existing equipment
