Bussmann Series FNM-1

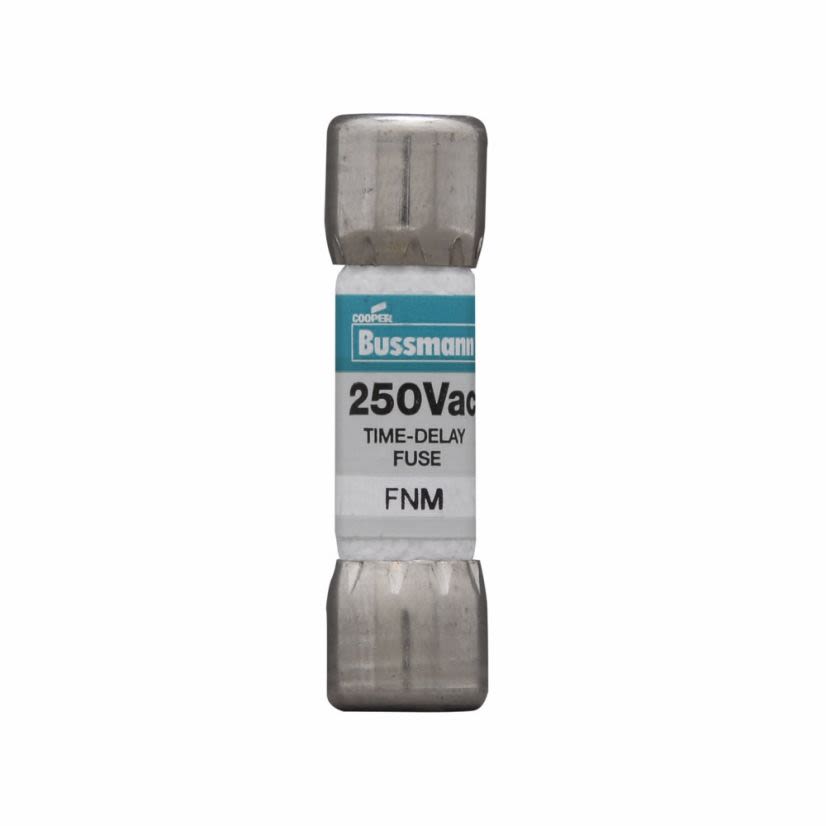

Bussmann Fusetron FNM-1 Time Delay Fuse, 1 A, 250 V AC, 35/10000 A Interrupt, Class: Supplemental, Cylindrical Body
Bussmann Series FNM-1
Bussmann Fusetron FNM-1 Time Delay Fuse, 1 A, 250 V AC, 35/10000 A Interrupt, Class: Supplemental, Cylindrical BodyIn Stock: 19more info
|
In Stock: 19more info
|
Product Description
Bussmann Fusetron Fuse, Time Delay, Series: FNM, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1 A, 250 V AC, 35/10000 A Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Nickel Plated Bronze, Green, 13/32 in Dia x 1-1/2 in L Body Size
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size13/32 in Dia x 1-1/2 in L
Body TypeCylindrical
ClassSupplemental
ColorGreen
Country of OriginMexico
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating35/10000 A
ManufacturerEaton
MaterialNickel Plated Bronze
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
SeriesFNM
Terminal TypeFerrule End
Type / StyleTime Delay
Voltage Rating250 V AC
Documents
Applications
Industrial Facilities and Factory Facilities, Safety and Security Systems, General Purpose Circuits, Lighting Circuit Protection and Meter Circuits Applications
Features
- Low cost supplemental protection of 125/250 VAC inductive circuits
- Upgrading to Low-Peak class CC product will reduce SKU investment and minimize potential for misapplying fuse
- Nickel plated brass end caps
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|UL 248-14 Guide JDYX UL File No. E19180|CSA Class 1422-01|CSA File No. 53787
