Bussmann Series TCF70

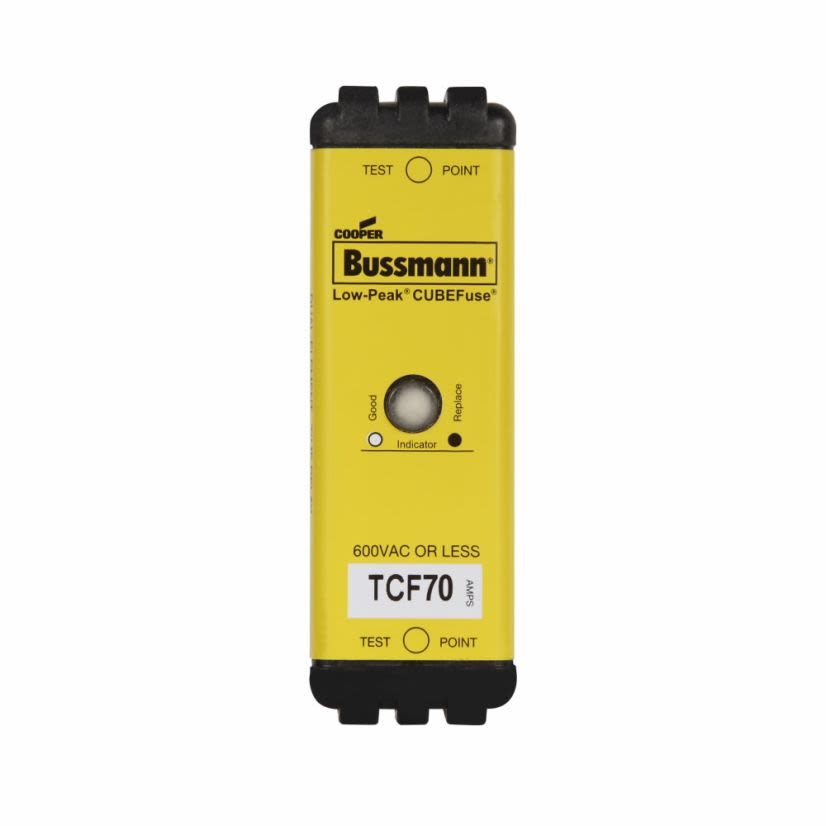

Bussmann Low-Peak CUBEFuse TCF70 Current Limiting Inrush Current Withstand Time Delay Fuse, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square Body
Bussmann Series TCF70
Bussmann Low-Peak CUBEFuse TCF70 Current Limiting Inrush Current Withstand Time Delay Fuse, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, Square BodyNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann Low-Peak CUBEFuse Time Delay Fuse, Current Limiting Inrush Current Withstand, Series: TCF, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone, 3.01 in L x 1 in W x 1.26 in H Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size3.01 in L x 1 in W x 1.26 in H
Body TypeSquare
ClassCF
Country of OriginCN
ElementDual
Interrupt Rating100/300 kA
ManufacturerEaton
MaterialGlass Filled Polyethersulfone
Mounting TypeChassis/DIN Rail
Response Time10 s at 500%
SeriesTCF
Terminal TypeBlade
Type / StyleCurrent Limiting Inrush Current Withstand
Voltage Rating600 V AC/300 V DC
Documents
Applications
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger safe system Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
Features
- The world's first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High 300 kA interrupt rating safely interrupts virtually any fault
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
