Littelfuse 313002P

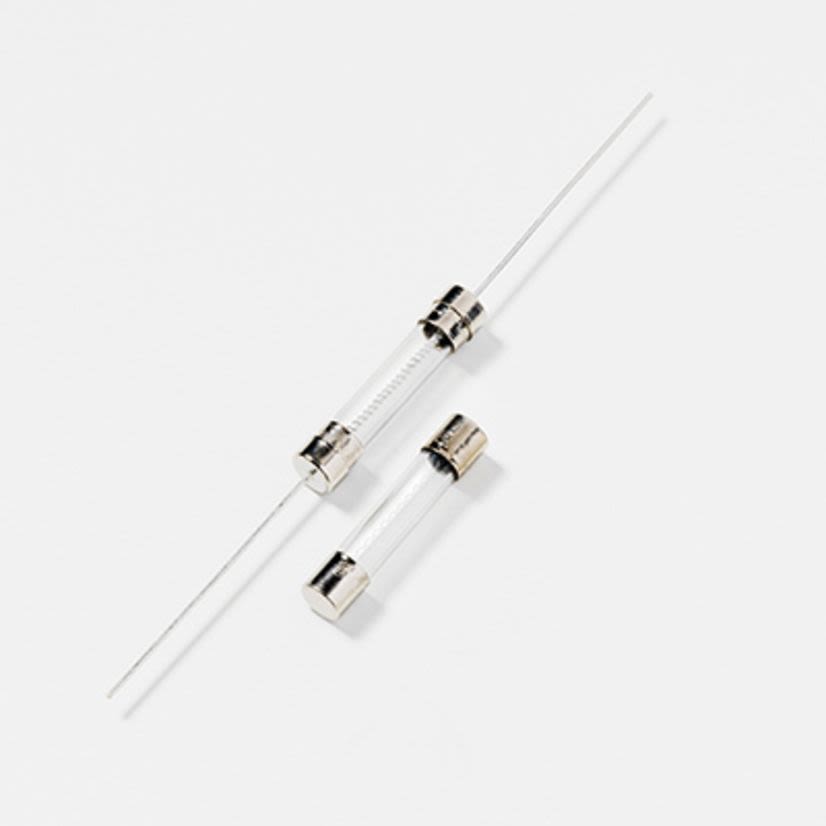

Littelfuse POWR-GARD Slo-Blo 313002P Time Delay Cartridge Fuse, 2 A, 250 V AC, 10 kA Interrupt, Cartridge Body
Littelfuse 313002P
Littelfuse POWR-GARD Slo-Blo 313002P Time Delay Cartridge Fuse, 2 A, 250 V AC, 10 kA Interrupt, Cartridge BodyOut of Stockmore info
|
BrandLittelfuse
MFG #313002P
Werner Part #4210576
UPC079458922998
Out of Stockmore info
|
BrandLittelfuse
MFG #313002P
Werner Part #4210576
UPC079458922998
Product Description
Littelfuse POWR-GARD Slo-Blo Cartridge Fuse, Time Delay, Series: 313, Non-Indicating, 2 A, 250 V AC, 10 kA Interrupt, 4 hr, 1 hr, 5 to 30 s Response, Axial Lead Terminal, Holder Mounting, Cartridge Body, Glass, 1/4 in Dia x 1-1/4 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCartridge
Country of OriginCA
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating10 kA
ManufacturerLittelfuse
MaterialGlass
Mounting TypeHolder
Package TypeEACH
Response Time4 hr, 1 hr, 5 to 30 s
Series313
Terminal TypeAxial Lead
Type / StyleTime Delay
Voltage Rating250 V AC
Applications
For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits
Features
- Time delayed in the overload range, which provides superior protection inductive loads such as motors, transformers and solenoids
- 3AG Indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
- Guesswork and time consuming circuit testing is eliminated
- Unique design offers the same quality performance characteristics as the standard 3AG fuse design
- Lead-free
- Nickel plated brass cap
- -55 to 125 deg C operating temperature
- 10 kA at 125 VAC interrupting rating
- 4 hrs minimum at 100%, 1 hr maximum at 135% and 5 to 30 sec maximum at 200% opening time
- 0.1169 ohms nominal cold resistance
- 77 I2T (A2 sec) nominal melting
