Littelfuse 312003P

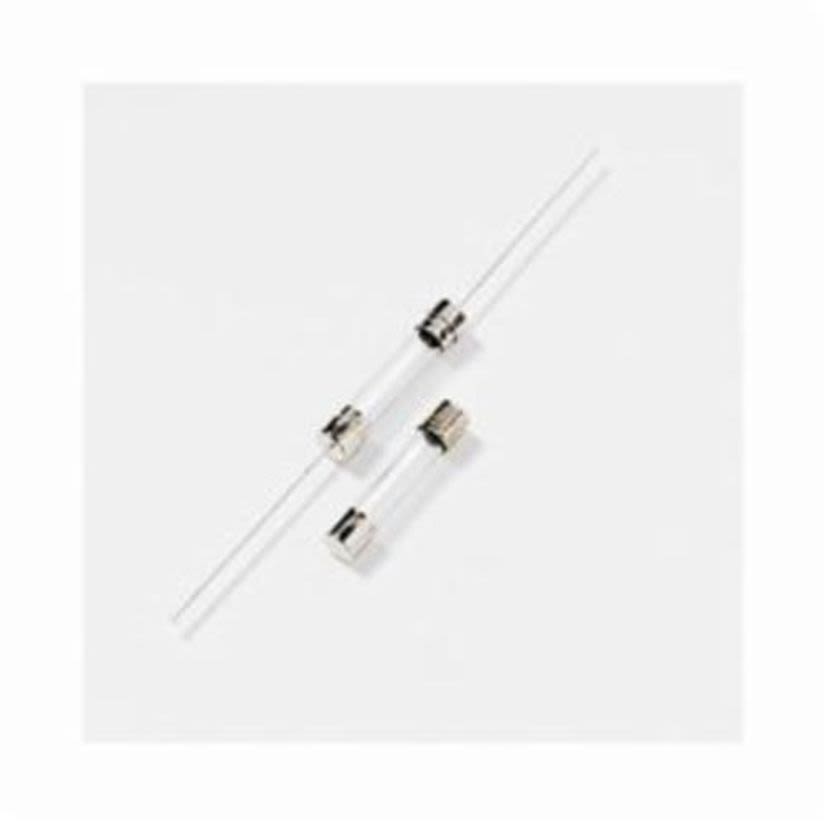

Littelfuse POWR-GARD 312003P Type 3AG Fast Acting Cartridge Fuse, 3 A, 250 V AC, 10 kA Interrupt, Cartridge Body
Littelfuse 312003P
Littelfuse POWR-GARD 312003P Type 3AG Fast Acting Cartridge Fuse, 3 A, 250 V AC, 10 kA Interrupt, Cartridge BodyIn Stock: 17more info
|
In Stock: 17more info
|
Product Description
Littelfuse POWR-GARD Cartridge Fuse, Type 3AG Fast Acting, Series: 312, Non-Indicating, 3 A, 250 V AC, 10 kA Interrupt, 4 hr, 1 hr, 5 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCartridge
Country of OriginMX
ElementSingle
GTIN00079458921977
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating10 kA
ManufacturerLittelfuse
MaterialGlass
Mounting TypeHolder
Package TypeEACH
Response Time4 hr, 1 hr, 5 s
Series312
Terminal TypeFerrule
Type / StyleType 3AG Fast Acting
Voltage Rating250 V AC
Applications
For supplementary protection in appliances or utilization equipment to provide individual protection for components or internal circuits
Features
- Lead-free
- -55 to 125 deg C operating temperature
- Nickel plated brass cap
- 5 s maximum at 200%, 4 hr minimum at 100% and 1 hr maximum at 135% opening time
- 10 kA at 125 VAC interrupting rating
Specifications
Standard/Approvals: RoHS Compliant|UL 248-14|UL File No. E10480|CSA File No. LR29862|ICC Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
