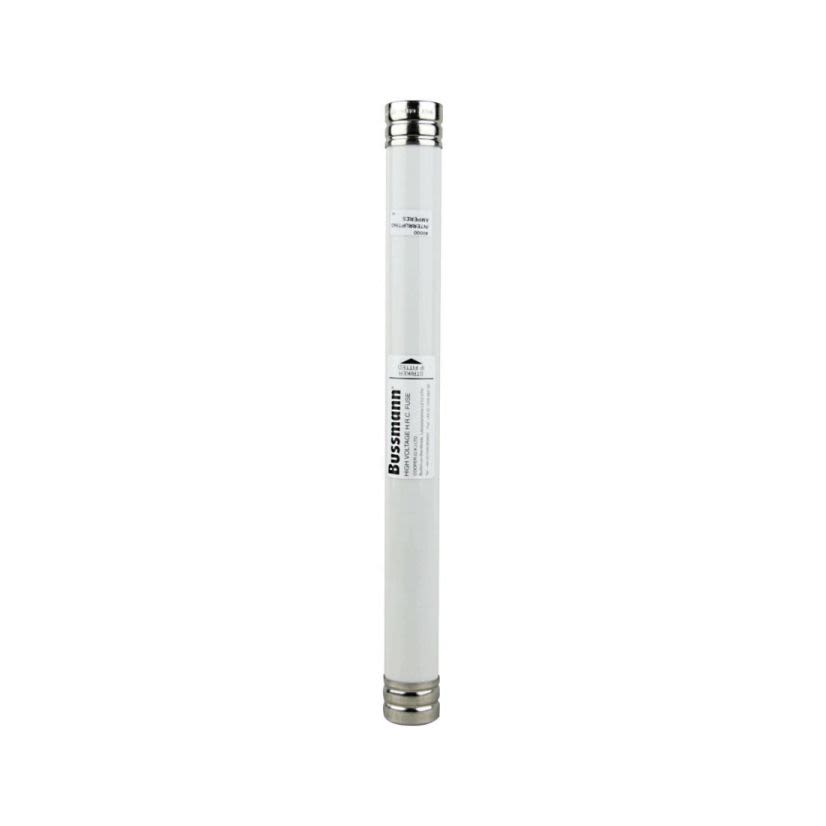

Bussmann Series 38CAVH1E
Edison 38CAVH1E CAVH Single Barrel Medium Voltage Fuse, 1E A, 38 kV, 40 kA Interrupt, Class: E
Bussmann Series 38CAVH1E
Edison 38CAVH1E CAVH Single Barrel Medium Voltage Fuse, 1E A, 38 kV, 40 kA Interrupt, Class: ENon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Edison Medium Voltage Fuse, Single Barrel, Series: CAVH, Indicating, 1E A, 38 kV, 40 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, 1.63 in Dia x 17.32 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size1.63 in Dia x 17.32 in L
ClassE
Country of OriginGB
Indicating/Non-IndicatingIndicating
Interrupt Rating40 kA
ManufacturerEaton
Mounting TypeBolted-On
SeriesCAVH
Terminal TypeFerrule
Type / StyleSingle Barrel
Voltage Rating38 kV
Documents
Applications
For primary protection of medium voltage potential transformers and small medium voltage service/control transformers
Features
- Low amp, current-limiting E-Rated PT medium voltage fuses are general purpose fuses defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E Rating
- E-rated general purpose fuses must have a current responsive element that will melt in 300 sec at an RMS current within the range of 200% to 240% of the fuse's nameplate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
- Physically dimensioned for retrofitting in existing hardware
- Space saving size
- Fitted with a striker pin for indication
