Ferraz Shawmut A480R6R-1

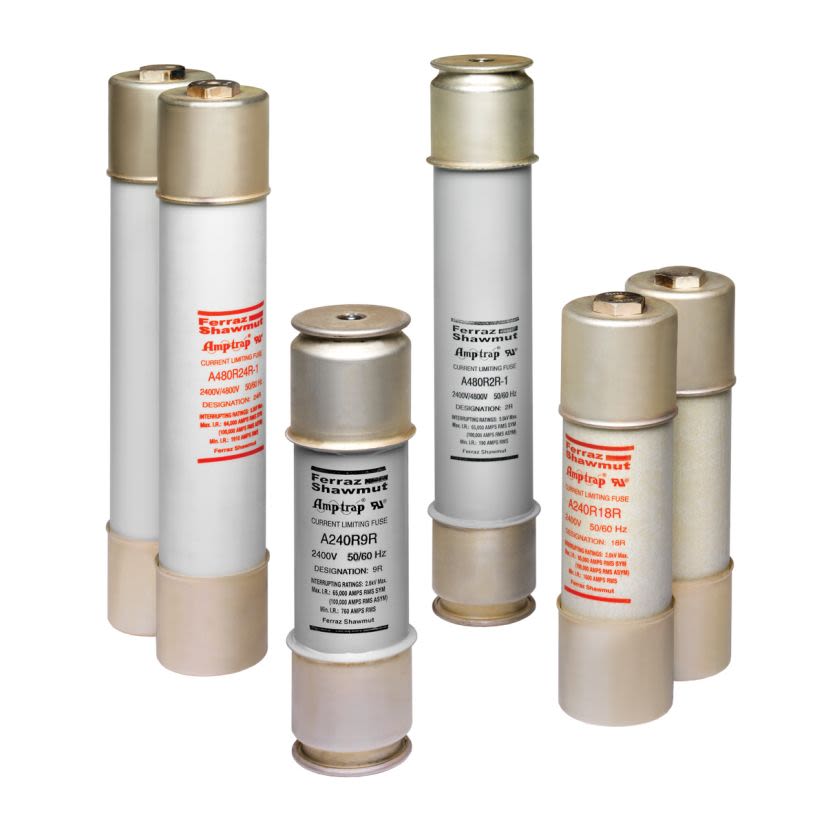

Mersen AMP-TRAP A480R6R-1 1-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 170 A, 4.8 kV AC, 65 kA Interrupt, Class: R
Ferraz Shawmut A480R6R-1
Mersen AMP-TRAP A480R6R-1 1-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 170 A, 4.8 kV AC, 65 kA Interrupt, Class: RInventory Not Available
Inventory Not Available
Product Description
Mersen AMP-TRAP Motor Protection Fuse, 1-Barrel Back Up Current-Limiting Medium Voltage, Series: A480R, Indicating, 170 A, 4.8 kV AC, 65 kA Interrupt, Class: R, Ferrule Terminal, Clip Mounting, Epoxy, 3 in Dia x 15.97 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size3 in Dia x 15.97 in L
ClassR
Country of OriginMX
Indicating/Non-IndicatingIndicating
Interrupt Rating65 kA
ManufacturerMERSEN
MaterialEpoxy
Mounting TypeClip
Package TypeEACH
SeriesA480R
Terminal TypeFerrule
Type / Style1-Barrel Back-Up Current Limiting Medium Voltage
Voltage Rating4.8 kV AC
Documents
Applications
For short circuit protection of medium voltage motors and motor controllers
Features
- The AMP-TRAP R-rated fuses are UL recognized
- Ferrule mounting for standard clips and interchangeability with other brands of fuses
- Current limiting for superior equipment protection
- Metal embossed catalog number and manufacturing date for lasting identification
- Hook eye for non load-break isolation by hook stick
- On all other 3 in barrel if a hook eye is required, use the operating eye 9F61AAW612
- Blown fuse indicator to give positive identification of open fuse
- Amp-Trap 3 in barrel 2 lb tripped force - 1/2 in
- Silver plated copper contact
- 12-1/2 in clip centers
- 6R size
