Bussmann Series LPJ-15SP

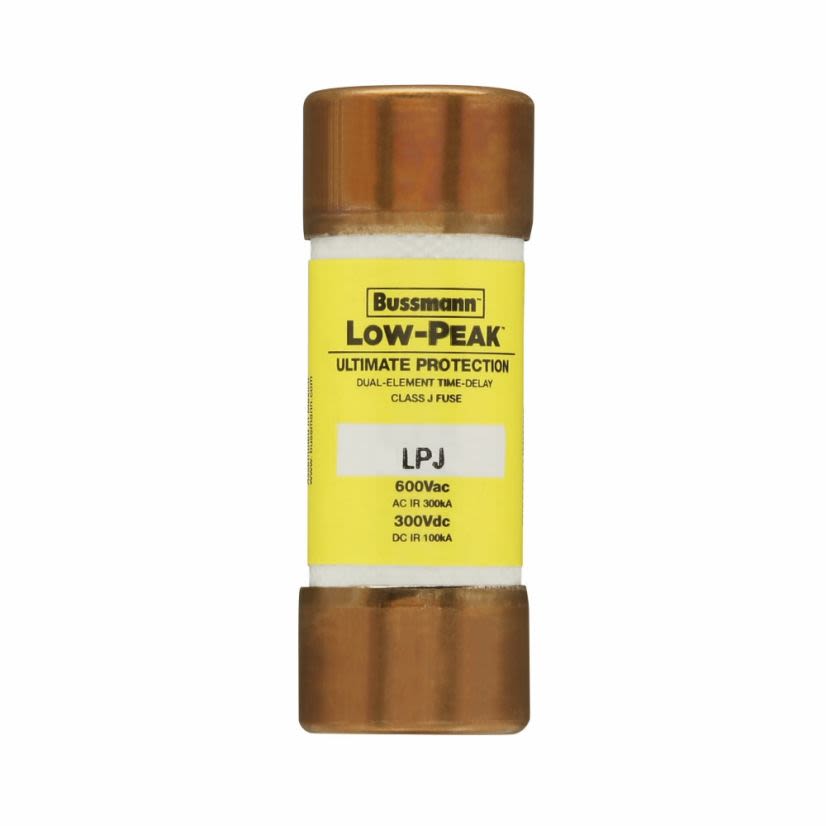

Bussmann Low-Peak LPJ-15SP Current Limiting Time Delay Fuse, 15 A, 600 V AC/300 V DC, 100/300 kA Interrupt, J Class, Cylindrical Body
Bussmann Series LPJ-15SP
Bussmann Low-Peak LPJ-15SP Current Limiting Time Delay Fuse, 15 A, 600 V AC/300 V DC, 100/300 kA Interrupt, J Class, Cylindrical BodyIn Stock: 158more info
|
BrandBussmann Series
MFG #LPJ-15SP
Werner Part #22643
UPC051712523240
In Stock: 158more info
|
BrandBussmann Series
MFG #LPJ-15SP
Werner Part #22643
UPC051712523240
Product Description
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LPJ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: J, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size0.81 in Dia x 2.25 in L
Body TypeCylindrical
ClassJ
Country of OriginMX
ElementDual
GTIN00051712523240
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating100/300 kA
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Package TypeEACH
Rejection/Non-RejectionNon-Rejection
Response Time10 s at 500%
SeriesLPJ
Terminal TypeFerrule
Type / StyleCurrent Limiting
Voltage Rating600 V AC/300 V DC
Documents
Applications
Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects and Power Panelboard Applications, Safety and Security Systems
Features
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and IEC motor controllers
- Space saving package for equipment down sizing
- Industry's only UL listed and CSA certified fuse with a 300 kea interrupt rating that allows for simple, worry free installation in virtually any application
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Long time delay minimizes needless fuse openings due to temporary overloads and transient surges
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Dual element fuses have lower resistance than ordinary fuses, hence they run cooler
- They can often be sized for back up protection against motor burnout from overload or single phasing if other overload protective devices fail
Specifications
Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|CSA C22.2 No. 248.8, Class 1422-02 File No. 53787|UL Guide No. JDDZ|UL File No. E4273|Guide No. JFHR|UL File No. E56412
