Bussmann Series LPS-RK-70SP

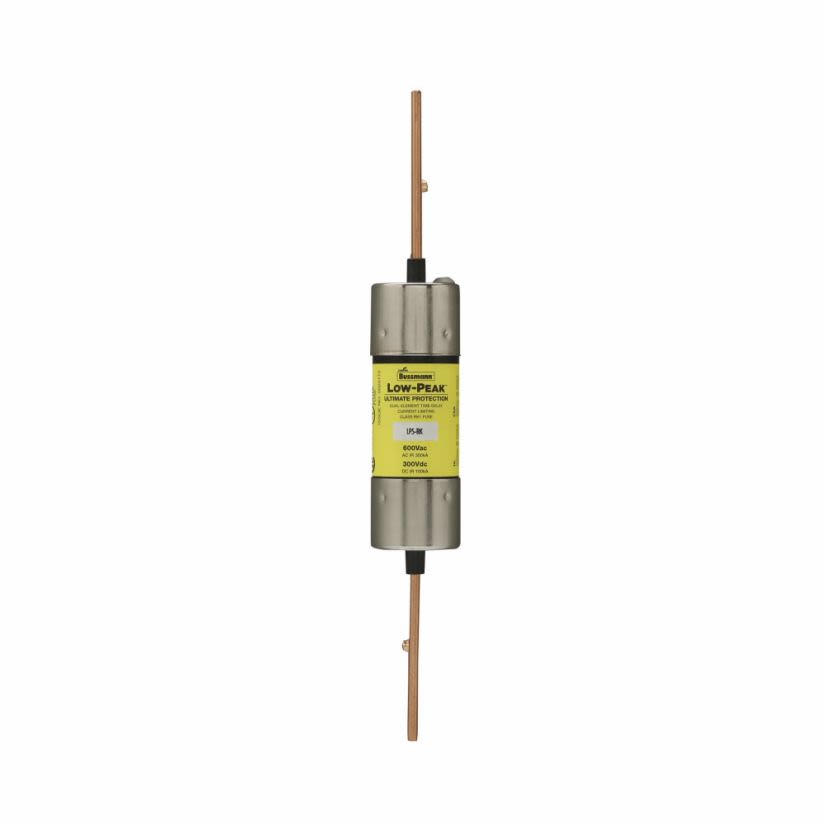

Bussmann Low-Peak LPS-RK-70SP Current Limiting Time Delay Fuse, 70 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body
Bussmann Series LPS-RK-70SP
Bussmann Low-Peak LPS-RK-70SP Current Limiting Time Delay Fuse, 70 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, RK1 Class, Cartridge BodyIn Stock: 8more info
|
In Stock: 8more info
|
Product Description
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 70 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.11 in Dia x 7.88 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size1.11 in Dia x 7.88 in L
Body TypeCartridge
ClassRK1
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating300/100 kAIC
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Package TypeEACH
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesLPS-RK
Terminal TypeBlade End
Voltage Rating600 V AC/300 V DC
Applications
Industrial Facilities and Factories, Safety and Security Systems, Feeder and Branch Circuits, Motors, Transformers, Solenoids and General Purpose Circuits Applications
Features
- Current limitation for maximum short circuit protection and reduced arc flash hazard
- Easy selective coordination with all Low-Peak fuses using simple 2:1 ampacity ratio
- No damage type 2 protection for IEC and NEMA starters when properly sized
- High inrush current motor protection
- Time delay permits 130% FLA sizing for back-up motor overload protection and 1 ph protection
- Low wattage loss power consumption
- Electrically isolated end caps for additional safety
- VAC interrupt rating that exceeds requirements for virtually all applications
