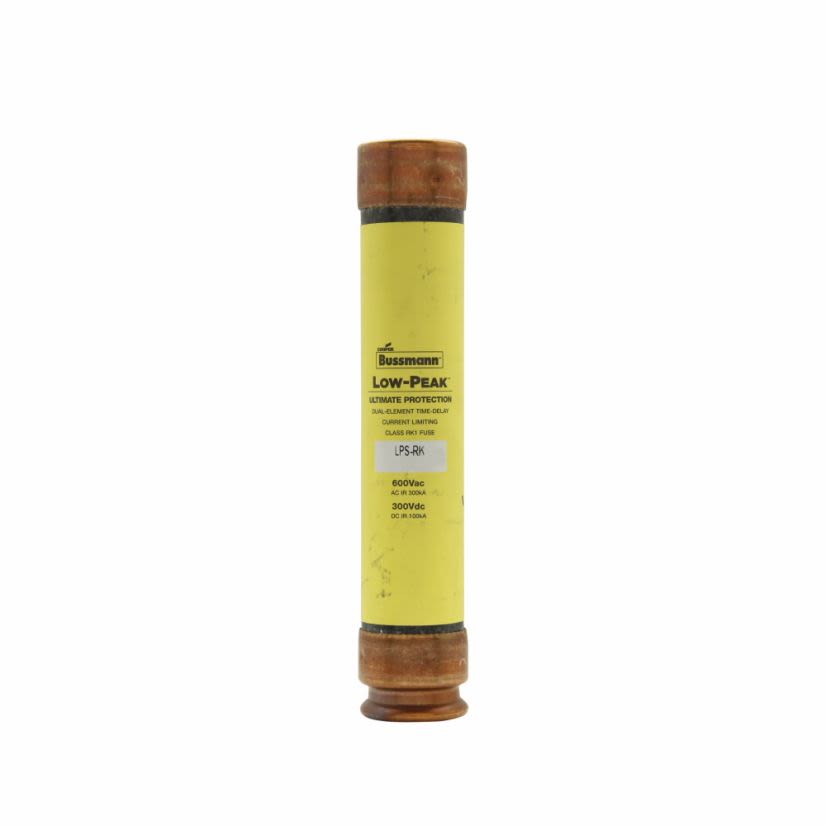

Bussmann Series LPS-RK-45SP
Bussmann Low-Peak LPS-RK-45SP Current Limiting Time Delay Fuse, 45 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, RK1 Class, Cylindrical Body
Bussmann Series LPS-RK-45SP
Bussmann Low-Peak LPS-RK-45SP Current Limiting Time Delay Fuse, 45 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, RK1 Class, Cylindrical BodyIn Stock: 10more info
|
In Stock: 10more info
|
Product Description
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 45 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 1.06 in Dia x 5.5 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size1.06 in Dia x 5.5 in L
Body TypeCylindrical
ClassRK1
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating300/100 kAIC
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Package TypeEACH
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesLPS-RK
Terminal TypeFerrule End
Voltage Rating600 V AC/300 V DC
Applications
Industrial Facilities and Factories, Safety and Security Systems, Feeder and Branch Circuits, Motors, Transformers, Solenoids and General Purpose Circuits Applications
Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time-delay permits sizing as close as 130% of motor full load amps (FLA) for back-up overload protection
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and the international electrotechnical commission (IEC) motor controllers
- Electrically isolated end caps for additional safety
