Bussmann Series LPS-RK-60SP

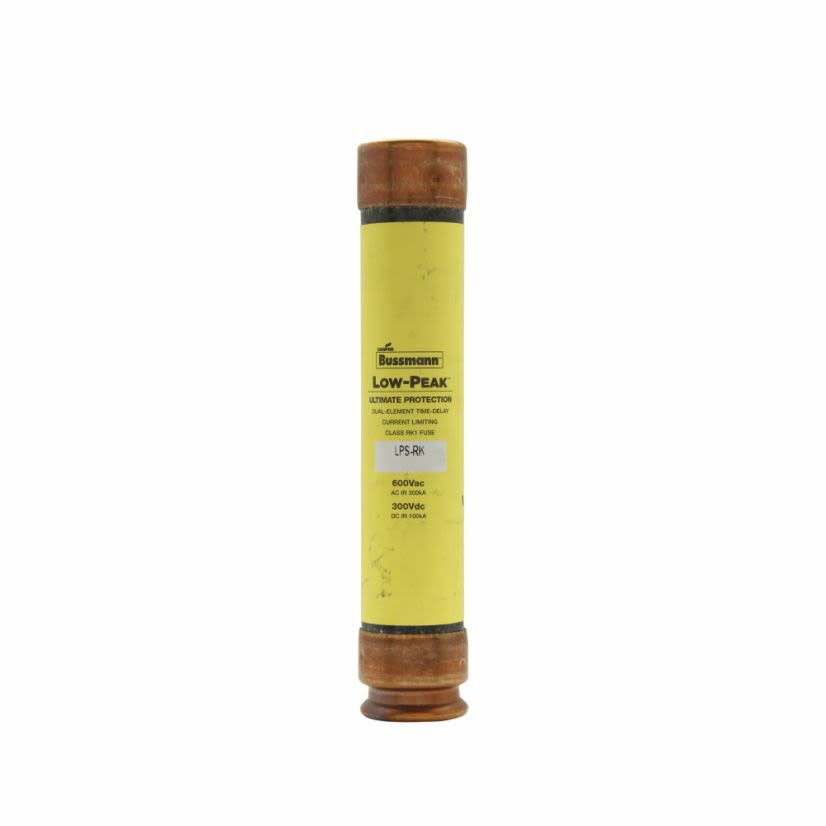

Bussmann Low-Peak LPS-RK-60SP Current Limiting Low Voltage Time Delay Fuse, 60 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body
Bussmann Series LPS-RK-60SP
Bussmann Low-Peak LPS-RK-60SP Current Limiting Low Voltage Time Delay Fuse, 60 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, RK1 Class, Cartridge BodyIn Stock: 15more info
|
In Stock: 15more info
|
Product Description
Bussmann Low-Peak Fuse, Current Limiting Low Voltage Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 60 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 1.06 in Dia x 5.5 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size1.06 in Dia x 5.5 in L
Body TypeCartridge
ClassRK1
Country of OriginSri Lanka
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating300/100 kAIC
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Package TypeEACH
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesLPS-RK
Terminal TypeFerrule End
Type / StyleDelay Fuse
Voltage Rating600 V AC/300 V DC
Applications
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches
Features
- Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 prevents widespread blackouts
- Time delay permits 130% FLA sizing for back-up motor protection
- 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- Protects against 1 ph motor damage
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Electrically isolated end caps for additional safety
