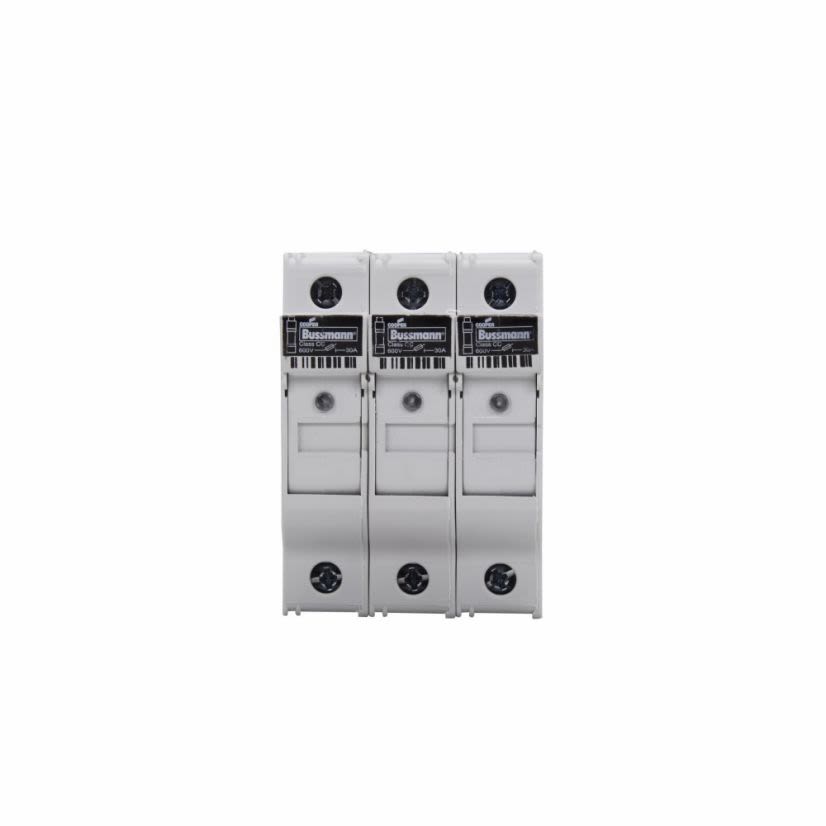

EATON Bussmann Series CH DIN rail fuse holders are for UL class CC, supplemental fuses and IEC 10 x 38 fuses. They are available with and without indication in 1, 2, 3-pole IP20 finger safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.
Attributes
Documents
Features
Specifications
Attributes
ClassCC
ColorWhite
Connection TypeSpade Lug
Country of OriginChina
Dimensions2.909 in H x 2.067 in W x 3.275 in D
Fuse Diameter10 mm
Fuse Holder CodeW
Fuse Length38 mm
GTIN00051712362702
ManufacturerEaton
MaterialPolyester
Mounting TypeDIN Rail
Number Of Phases3/1/2023 12:00:00 AM
Number of Poles3
SeriesCH Series
Size of Wire18 to 4 AWG
Suitable For Use WithKTK-R/LP-CC/FNQ-R Series Class CC Fuse
