Bussmann Series CHCC1DIU

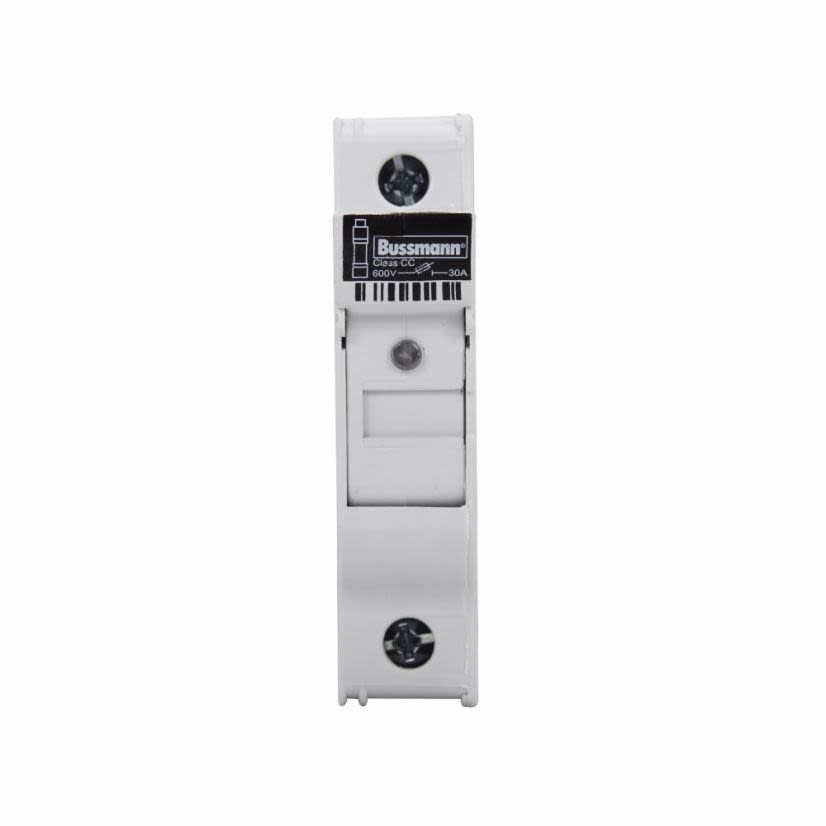

EATON Bussmann Series CHCC1DIU Modular Fuse Holder, 600 V, 30A, Single-pole, With indicator
Bussmann Series CHCC1DIU
EATON Bussmann Series CHCC1DIU Modular Fuse Holder, 600 V, 30A, Single-pole, With indicatorIn Stock: 1more info
|
BrandBussmann Series
MFG #CHCC1DIU
Werner Part #3911832
UPC051712362665
In Stock: 1more info
|
BrandBussmann Series
MFG #CHCC1DIU
Werner Part #3911832
UPC051712362665
Attributes
Documents
Applications
Features
Specifications
Attributes
ClassCC
ColorWhite
Connection TypeSpade Lug
Country of OriginChina
Fuse Diameter10 mm
Fuse Holder CodeW
Fuse Length38 mm
GTIN00051712362665
ManufacturerEATON
Number Of Phases1/3
Number of Poles1
Package TypeEACH
SeriesCH Series
Suitable For Use WithKTK-R/LP-CC/FNQ-R Series Class CC Fuse
Temperature Rating-20 to 90 deg C
Type / StyleFinger Safe Modular
Voltage Rating600 V
Applications
Used to protects Electrical System
Features
- Easy color coding for use yellow for PV, red for IEC and black for UL applications
- Agency ratings up to 1000 VDC for use with PV fuses
- Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and with comb bus bars
- Use any higher temperature rated wire with appropriate derating
- Complete range of UL listed and high SCCR rated 1 and 3-phase finger safe comb bus bars and power feed lugs
- Enhanced safety with IP20 finger safe construction
Specifications
Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E14853|Guide IZLT/IZLT2|CSA File No. 47235, Class 6225-01|CCC Certified
