Ferraz Shawmut USM3I

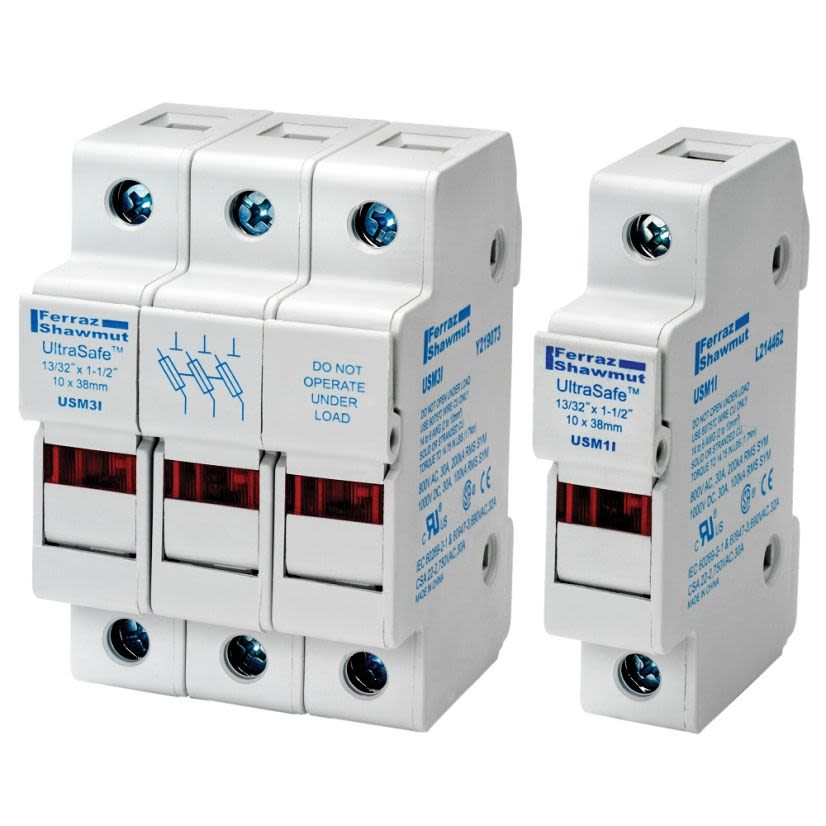

Mersen UltraSafe USM3I Fuse Holder, 600 V AC/DC, 30 A, 14 to 6 AWG Wire, 3 Poles
Ferraz Shawmut USM3I
Mersen UltraSafe USM3I Fuse Holder, 600 V AC/DC, 30 A, 14 to 6 AWG Wire, 3 PolesOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Mersen UltraSafe Fuse Holder, Series: USM, 600 V AC/DC, 30 A, 3 Pole, 3 Phase, Class: Midget, Fuse Holder Code: D, Pressure Plate, 14 to 6 AWG Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 85 deg C, For Use With: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M and HP10M Series Fuse, Polyamide, 3.07 in L x 2.07 in W x 2.32 in H
Attributes
Documents
Applications
Features
Attributes
ClassMidget
Connection TypePressure Plate
Country of OriginCN
Dimensions3.07 in L x 2.07 in W x 2.32 in H
Fuse Diameter13/32 in
Fuse Holder CodeD
Fuse Length1-1/2 in
ManufacturerMERSEN
MaterialPolyamide
Mounting TypeDIN Rail
Number Of Phases3
Number of Poles3
Package TypeEACH
SeriesUSM
Size of Wire14 to 6 AWG
Suitable For Use WithATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M and HP10M Series Fuse
Temperature Rating-40 to 85 deg C
Voltage Rating600 V AC/DC
Documents
Applications
For all circuits up to 600 VAC for motors, control circuits, transformers, and DC circuits up to 1000 VDC
Features
- IP20 finger safe (touch safe)
- Optional visual blown fuse indicator lights
- Compact footprint
- Quick, tool-free, easy fuse change outs
- Phillips/slot head terminal screws
- 14 to 6 AWG (single conductor), 14 to 10 AWG (dual conductor) wire size
- 200 kA short circuit current rating
