Bussmann Series TCFH30N

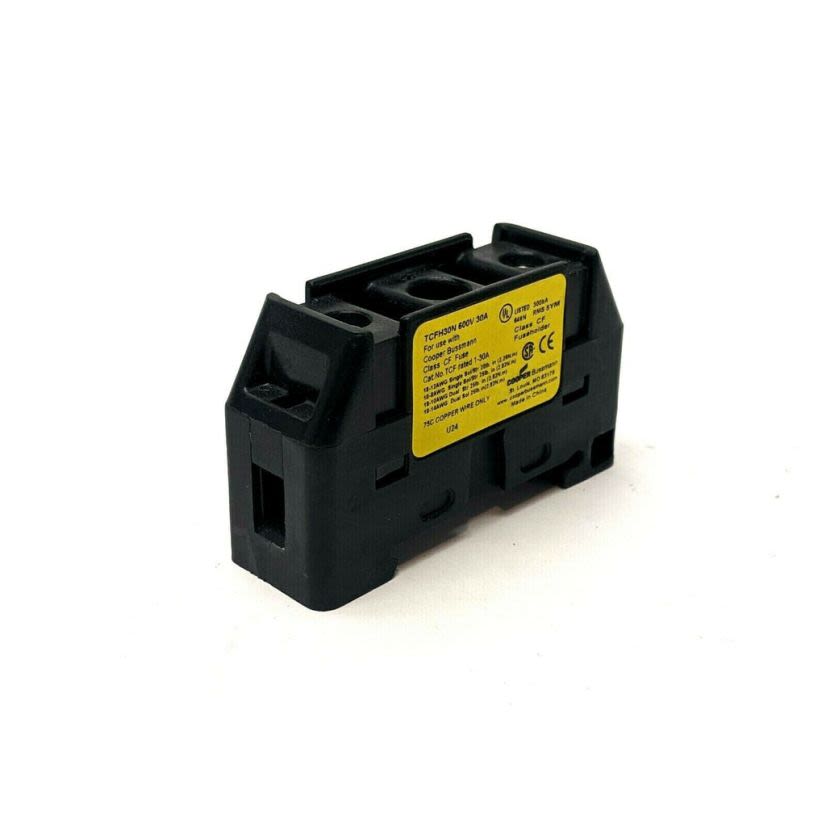

Bussmann CUBEFuse TCFH30N Finger Safe Non-Indicating Fuse Holder, 600 V AC/300 V DC, 30 A, 18 to 8 AWG Wire, 1 Pole
Bussmann Series TCFH30N
Bussmann CUBEFuse TCFH30N Finger Safe Non-Indicating Fuse Holder, 600 V AC/300 V DC, 30 A, 18 to 8 AWG Wire, 1 PoleOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Bussmann CUBEFuse Fuse Holder, Finger Safe Non-Indicating, Series: TCFH, 600 V AC/300 V DC, 30 A, 1 Pole, Class: CF, Pressure Plate, 18 to 8 AWG Wire, Chassis/DIN Rail Mount, -40 to 176 deg F, For Use With: CUBE Fuse CF and J and Low-Peak Fuse, Glass Filled Polyethersulfone, Gray, 2.3 in L x 0.76 in W x 1.357 in H
Attributes
Documents
Applications
Features
Attributes
ClassCF
ColorGray
Connection TypePressure Plate
Country of OriginSri Lanka
Dimensions2.3 in L x 0.76 in W x 1.357 in H
ManufacturerEaton
MaterialGlass Filled Polyethersulfone
Mounting TypeChassis/DIN Rail
Number of Poles1
SeriesTCFH
Size of Wire18 to 8 AWG
Suitable For Use WithCUBE Fuse CF and J and Low-Peak Fuse
Temperature Rating-40 to 176 deg F
Type / StyleFinger Safe Non-Indicating
Voltage Rating600 V AC/300 V DC
Documents
Applications
Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger Safe System Applications, Safety and Security Systems
Features
- Finger safe construction for enhanced electrical safety
- 30, 60 and 100 A ratings help prevent over fusing by rejecting higher fuse amperage ratings
- Smallest fuse and holder footprint of any class fuse installation including class J, CC, T and RK
- 35 mm DIN rail or panel mount for flexible installation
- All holders dovetail together to easily achieve the required number of poles
- Dual wire rated terminals for wiring ease
