Hubbell Wiring Device - Kellems HBL460MI7W

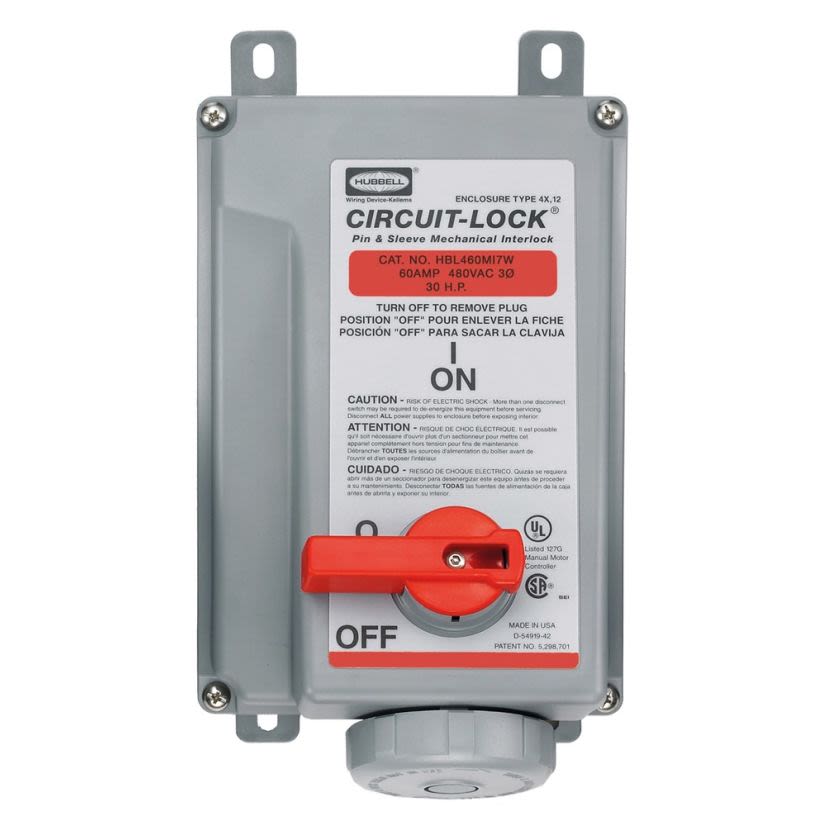

Hubbell Wiring Device-Kellems Circuit-Lock HBL460MI7W 3-Phase Female Grounding Watertight Pressure Screw Terminal Pin and Sleeve Mechanical Interlock, 480 V AC, 60 A, 3 Poles, 4 Wires
Hubbell Wiring Device - Kellems HBL460MI7W
Hubbell Wiring Device-Kellems Circuit-Lock HBL460MI7W 3-Phase Female Grounding Watertight Pressure Screw Terminal Pin and Sleeve Mechanical Interlock, 480 V AC, 60 A, 3 Poles, 4 WiresIn Stock: 4more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL460MI7W
Werner Part #39072
UPC783585406053
In Stock: 4more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL460MI7W
Werner Part #39072
UPC783585406053
Product Description
Hubbell Wiring Device-Kellems Circuit-Lock, HBL460MI7W, Pin and Sleeve Mechanical Interlock, 3-Phase Female Grounding Watertight Pressure Screw Terminal, 480 V AC, 60 A, 30 hp, 28800 W Power, 3 Pole, 4 Wires, 1-1/4 in Hub, NEMA 4X/12/IP67 Enclosure, Threaded Mounting, Thermoplastic, Red, 8-3/4 in W x 11 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions8-3/4 in W x 11 in H
Electrical Ratings14400 W
Enclosure TypeNEMA 4X/12/IP67
ManufacturerHubbell
MaterialThermoplastic
Mounting TypeThreaded
Number of Poles3
Number of Wires4
Package TypeEACH
Type3-Phase Female Grounding Watertight Pressure Screw Terminal
Type / StyleFemale Grounding Watertight
Voltage Rating480 V AC
Documents
Applications
High Ampacity Watertight Connection Applications
Warranty
Limited
Features
- Large gears enclosed in a gear box
- Lockable handle
- Pre-wired IEC Pin and Sleeve receptacle
Specifications
Standards/Approvals: UL 498|IEC 309-1/309-2|CSA Certified
