Crouse-Hinds series APJ6485

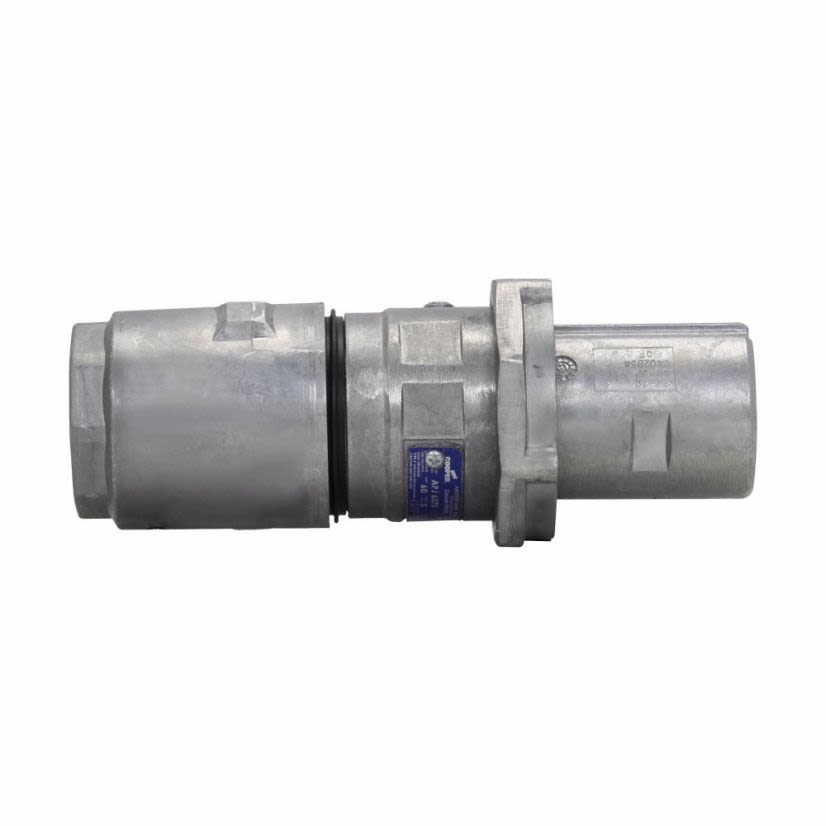

Crouse-Hinds Arktite APJ6485 Grounding Style 2 Heavy Duty Watertight Weatherproof Mating Plug, 600 VAC/250 VDC, 100 A, 4 Poles, 3 Wires, Natural
Crouse-Hinds series APJ6485
Crouse-Hinds Arktite APJ6485 Grounding Style 2 Heavy Duty Watertight Weatherproof Mating Plug, 600 VAC/250 VDC, 100 A, 4 Poles, 3 Wires, NaturalOut of Stockmore info
|
BrandCrouse-Hinds series
MFG #APJ6485
Werner Part #26304
UPC782274050201
Out of Stockmore info
|
BrandCrouse-Hinds series
MFG #APJ6485
Werner Part #26304
UPC782274050201
Product Description
Crouse-Hinds Arktite Mating Plug, Grounding Style 2 Heavy Duty Watertight Weatherproof, Series: APJ, 600 VAC/250 VDC, 100 A, 75 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 4 Rating, Crimp/Pressure/Solder Terminal, Copper-Free Aluminum, Natural, 4-1/8 in Dia x 10-1/8 in L Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorNatural
Country of OriginSri Lanka
Dimensions4-1/8 in Dia x 10-1/8 in L
Frequency Rating50 to 400 Hz
GTIN782274000000
Horsepower75 hp
ManufacturerEaton
MaterialCopper-Free Aluminum
NEMA RatingNEMA 4
Number of Poles4
Number of Wires3
Package TypeEACH
SeriesAPJ
Size of Wire4 To 1 AWG (Building), 4 To 2 AWG (Extra Flex)
Terminal TypeCrimp/Pressure/Solder
TypeGrounding Style 2 Heavy Duty Watertight Weatherproof
Type / StylePin and Sleeve
Voltage Rating600 V AC/250 V DC
Documents
Applications
Supply Power to Portable Electrically Operated Devices such as Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Conveyors, Lighting Systems and Similar Equipment, Industrial Facilities, Factories, Power Distribution and Control Applications
Warranty
Limited
Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
- Reverse interior
Specifications
Specifications: UL 514, UL 1010, UL 1682, CSA C22.2
- Watertight, Grounding Style 1, NEMA 4 Enclosure
- Cord Type: 0.875 to 1.700 in
Specifications: UL 514, UL 1010, UL 1682, CSA C22.2
