Woodhead 67W76

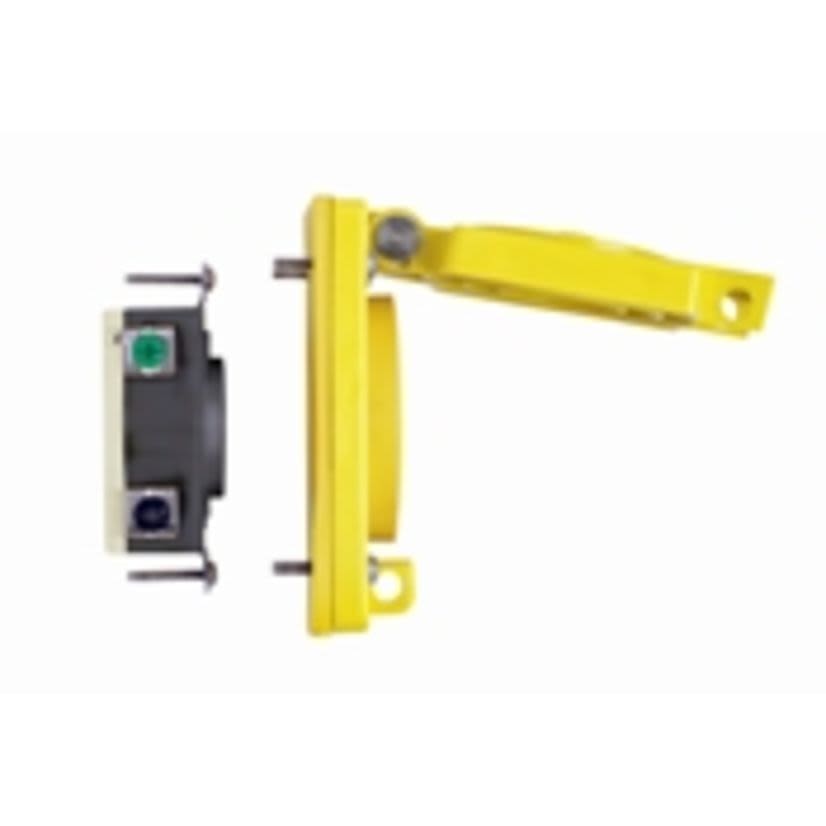

Woodhead Watertite 67W76 130147 3-Phase Female Single Receptacle With Locking Blade and Single Flip Coverplate, 480 V AC, 20 A, 3 Poles, 4 Wires, Yellow
Woodhead 67W76
Woodhead Watertite 67W76 130147 3-Phase Female Single Receptacle With Locking Blade and Single Flip Coverplate, 480 V AC, 20 A, 3 Poles, 4 Wires, YellowOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Woodhead Watertite Receptacle, 3-Phase Female Single, Series: 130147, 480 V AC, 20 A, 3 Pole, 4 Wires, L16-20 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginMX
Enclosure TypeIP67
ManufacturerMolex
NEMA RatingL16-20
Number of Poles3
Number of Wires4
Package TypePIECE
Series130147
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Female Single
Type / StyleFemale Single
Voltage Rating480 V AC
Documents
Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cable without damaging the cable
Specifications
Standards/Approvals: RoHS Compliant
