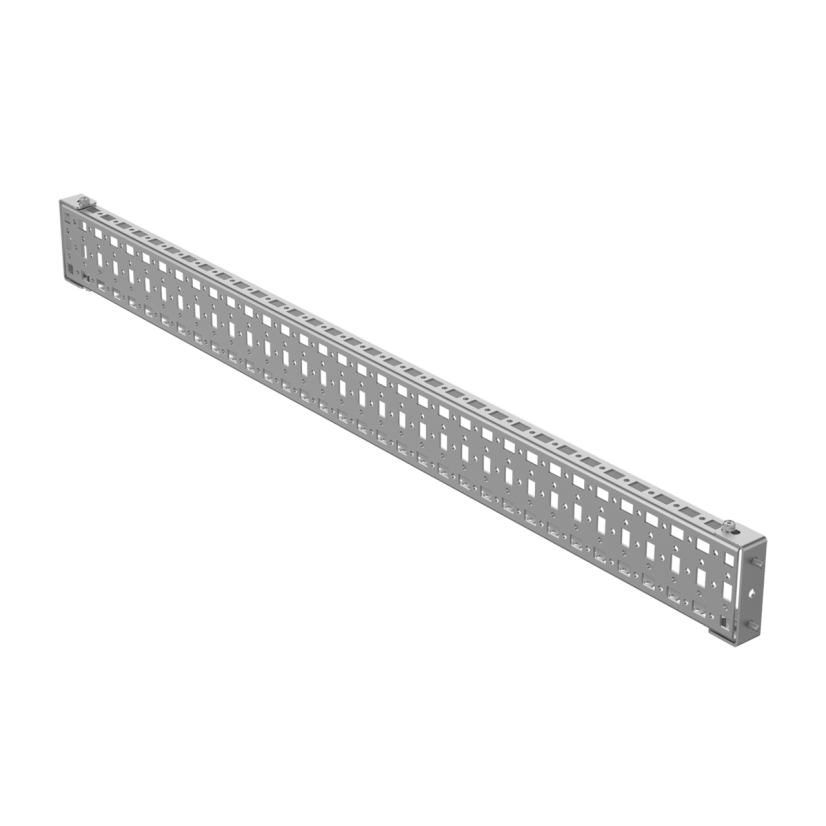

nVent HOFFMAN PGH3S8
Hoffman ProLine PGH3S8 P20 3-Row Hole Pattern Grid Strap, 2.95 in H, For Use With ProLine 700 mm W x 800 mm D-Frame Modular Enclosures, Steel
nVent HOFFMAN PGH3S8
Hoffman ProLine PGH3S8 P20 3-Row Hole Pattern Grid Strap, 2.95 in H, For Use With ProLine 700 mm W x 800 mm D-Frame Modular Enclosures, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PGH3S8
Werner Part #37840
UPC783510905804
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PGH3S8
Werner Part #37840
UPC783510905804
Product Description
Hoffman ProLine Grid Strap, 3-Row Hole Pattern, Series: P20, 2.95 in Height, Surface Mount, For Use With: ProLine 700 mm W x 800 mm D-Frame Modular Enclosures, Steel, Zinc Plated, Gray
Attributes
Documents
Warranty
Features
Attributes
ColorGray
Country of OriginMX
FinishZinc Plated
ManufacturernVent
MaterialSteel
Mounting TypeSurface
Package TypeBOX
SeriesP20
Size2.95 in H
Suitable For Use WithProLine 700 mm W x 800 mm D-Frame Modular Enclosures
Type3-Row Hole Pattern
Type / Style3-Row Hole Pattern
Warranty
60 Days
Features
- They are provided with specially designed rectangular holes to allow the use of cage nuts or front loading cage nuts
- Mounting holes are provided on 25 mm centers
- Grid straps are available with either 1 row or 3 rows of holes and are furnished in pairs
- Mounting hardware to attach grid straps to the frame or to other grid straps is included
- Can be mounted left to right horizontally between front to back pairs or from the sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 ga (1.75mm) conductive steel
