nVent HOFFMAN PSF168

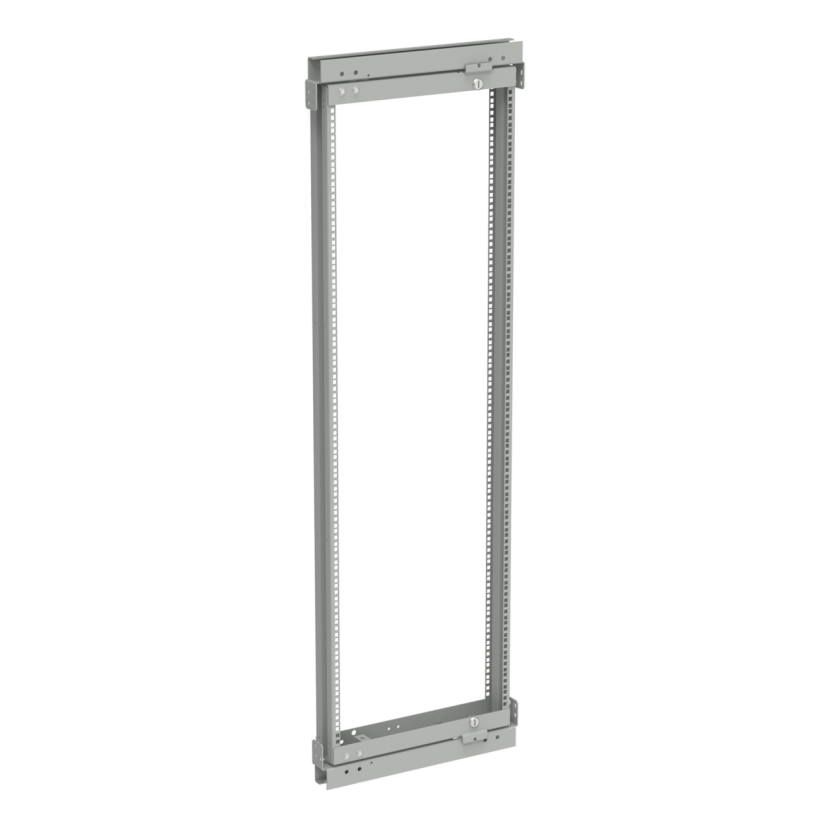

Hoffman ProLine PSF168 P20 Heavy Duty Swing Out Rack Frame, 1438 mm H x 496 mm W x 87 mm D, For Use With ProLine 1600 mm H x 800 mm W Modular Enclosures, Steel
nVent HOFFMAN PSF168
Hoffman ProLine PSF168 P20 Heavy Duty Swing Out Rack Frame, 1438 mm H x 496 mm W x 87 mm D, For Use With ProLine 1600 mm H x 800 mm W Modular Enclosures, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PSF168
Werner Part #37900
UPC783510997502
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PSF168
Werner Part #37900
UPC783510997502
Product Description
Hoffman ProLine Swing Out Rack Frame, Heavy Duty, Series: P20, 496 mm Width, 87 mm Depth, 1438 mm Height, For Use With: ProLine 1600 mm H x 800 mm W Modular Enclosures, Steel, Light Gray
Attributes
Documents
Included
Warranty
Features
Attributes
ColorLight Gray
Country of OriginMX
ManufacturernVent
MaterialSteel
Package TypeEACH
SeriesP20
Size1438 mm H
Suitable For Use WithProLine 1600 mm H x 800 mm W Modular Enclosures
TypeHeavy Duty
Type / StyleHeavy Duty
Included
Hinges, (2) Quarter Turn Latches and Mounting Hardware
Warranty
Limited
Features
- Spring loaded pivot post makes installation easy
- Swing-out rack frames can also be installed in right, left or both bays of 1200 mm wide frames using center uprights
- Maximum equipment load is 300 lb
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Hinges that provide 170 deg rotation are optional
- Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
- Swing-out mounting supports mount to inside of frame at any vertical location, flexibility to select any model size equal to or shorter in height (That is use of 1400mm rack frame in 2000mm high enclosure)
