nVent HOFFMAN PPB288

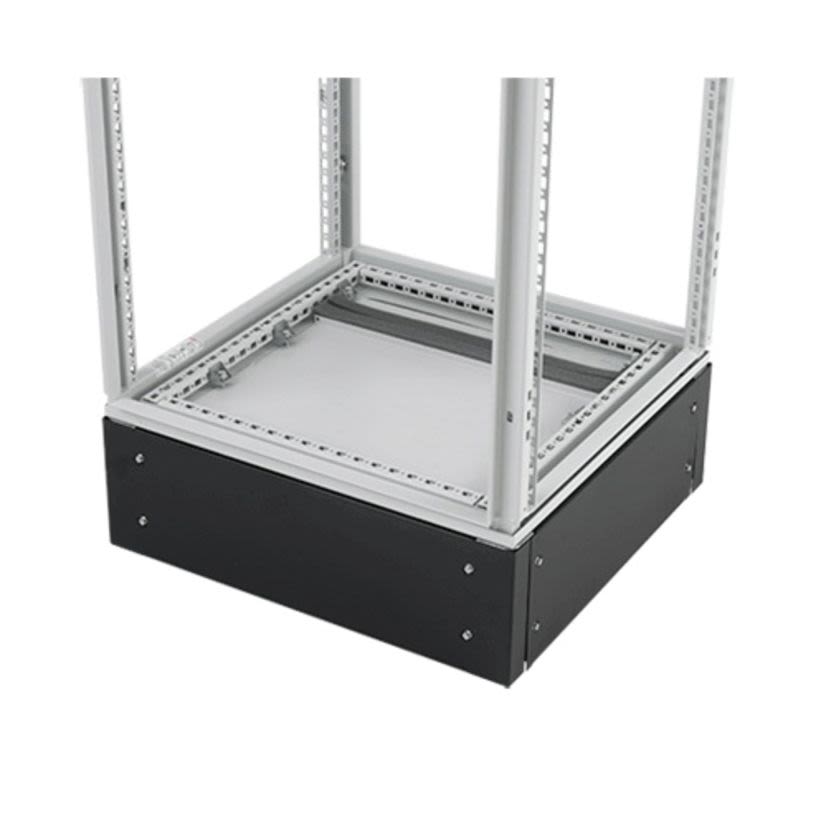

Hoffman ProLine PPB288 P20 Plinth Base, 200 mm H x 799 mm W x 759 mm D, For Use With ProLine 800 x 800 mm Modular Enclosure Frames, Steel, Black
nVent HOFFMAN PPB288
Hoffman ProLine PPB288 P20 Plinth Base, 200 mm H x 799 mm W x 759 mm D, For Use With ProLine 800 x 800 mm Modular Enclosure Frames, Steel, BlackNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PPB288
Werner Part #307739
UPC783510976002
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #PPB288
Werner Part #307739
UPC783510976002
Product Description
Hoffman ProLine Plinth Base, Series: P20, 200 mm H x 799 mm W x 759 mm D, For Use With: ProLine 800 x 800 mm Modular Enclosure Frames, Steel, Polyester Powder Painted, Black
Attributes
Documents
Included
Warranty
Features
Attributes
ColorBlack
Country of OriginMX
FinishPolyester Powder Painted
ManufacturernVent
MaterialSteel
Package Height8.7 IN
Package Length49 in
Package TypeEACH
Package Volume4268.16 cu-in
Package Weight31.94 lb
Package Width10 in
SeriesP20
Size200 mm H x 799 mm W x 759 mm D
Suitable For Use WithProLine 800 x 800 mm Modular Enclosure Frames
Type / Style200-mm Plinth Base
Included
Mounting Hardware
Warranty
Limited
Features
- Plinth bases install under an enclosure to provide space for cables to enter from below
- The corner supports are cast aluminum
- The access panels are 16 ga steel and attach to the corner supports with screws
- Plinth bases are finished with RAL 9005 black textured polyester powder paint and include all necessary mounting hardware
- Order a gland plate system to provide Type 12 protection when using a plinth base
