nVent HOFFMAN CDSC603812

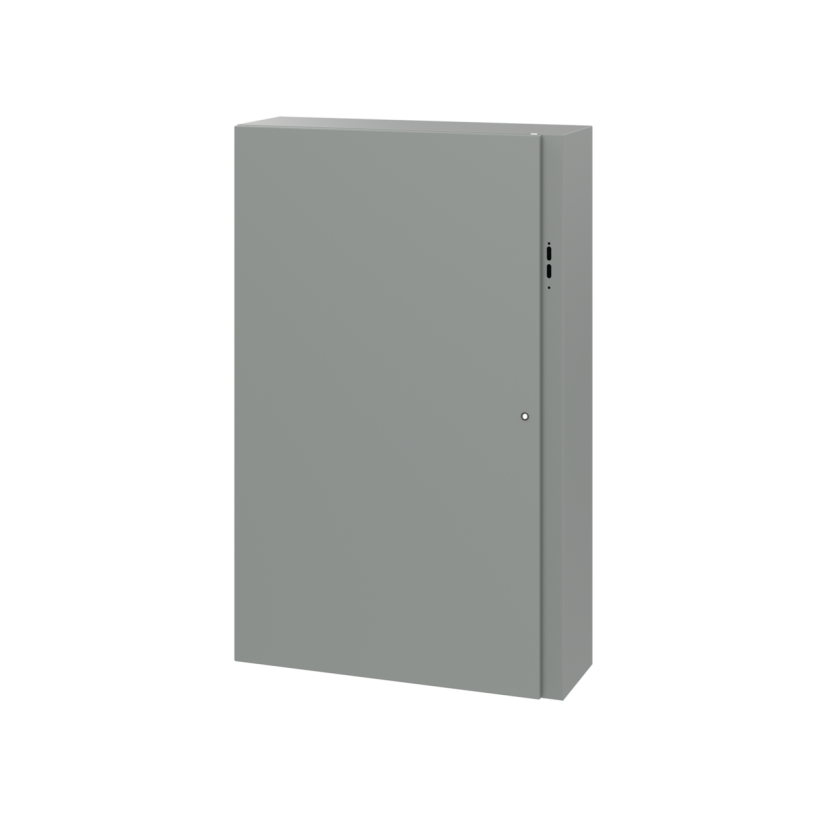

nVent HOFFMAN CONCEPT CDSC603812 CWD Disconnect Enclosure, 60 in L x 38 in W x 12 in D, NEMA 4/IP66 NEMA Rating, Steel
nVent HOFFMAN CDSC603812
nVent HOFFMAN CONCEPT CDSC603812 CWD Disconnect Enclosure, 60 in L x 38 in W x 12 in D, NEMA 4/IP66 NEMA Rating, SteelOut of Stockmore info
|
BrandnVent HOFFMAN
MFG #CDSC603812
Werner Part #303610
UPC783510783204
Out of Stockmore info
|
BrandnVent HOFFMAN
MFG #CDSC603812
Werner Part #303610
UPC783510783204
Product Description
nVent HOFFMAN CONCEPT Disconnect Enclosure, Series: CWD, 60 in Length, 38 in Width, 12 in Depth, NEMA 4/IP66, Continuous Hinged/Removable Cover, 34.2 in W x 58.2 in H Panel, Lock: 3-Point Latch/Padlock Handle, Wall Mount, Steel, Polyester Powder Painted, Gray
Attributes
Documents
Applications
Features
Attributes
BABA CompliantYes
ColorGray
Country of OriginUS
Cover TypeContinuous Hinged/Removable
FinishPolyester Powder Painted
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSteel
Mounting TypeWall
NEMA RatingNEMA 4/IP66
Package TypePIECE
Panel Size34.2 in W x 58.2 in H
SeriesCWD
Type / StyleCONCEPT? Disconnect Enclosure, Type 4
Documents
Applications
For indoor and outdoor environmental protection
Features
- Seams continuously welded and ground smooth
- External-formed 90 deg body flange channels away liquids
- Bonding provision on door, grounding stud on body
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Corner-formed doors
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
