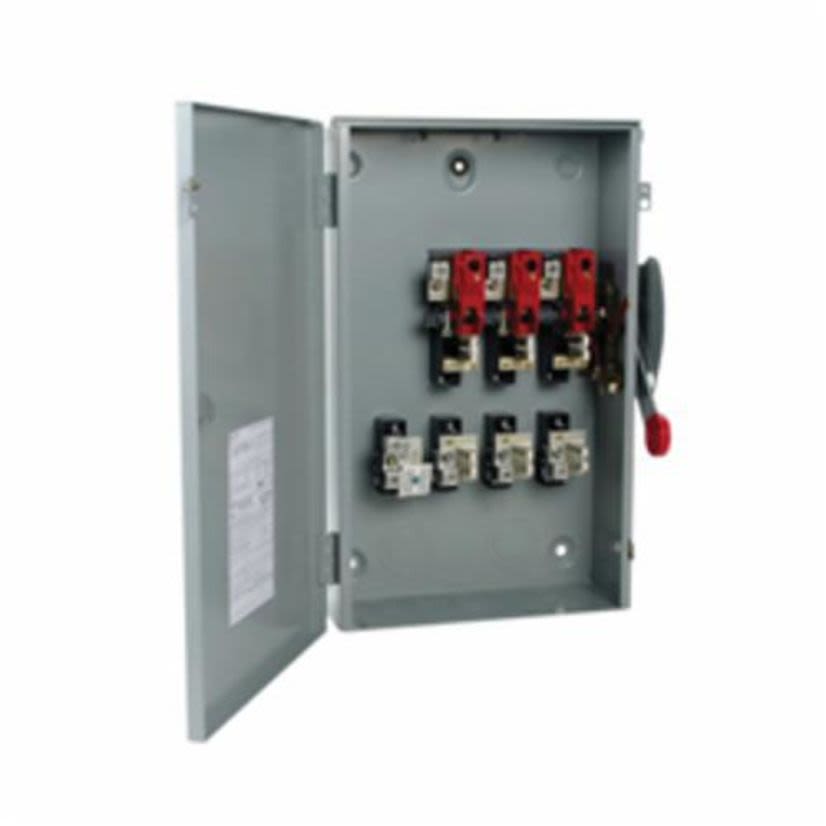

Cutler-Hammer Series DG324NRK
EATON DG324NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 200 A, 15 hp, 25 to 60 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DG324NRK
EATON DG324NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 200 A, 15 hp, 25 to 60 hp, 3PST Contact, 3 PolesIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 V AC, 200 A, 15 hp, 25 to 60 hp, 1/3 ph, 3 Pole, 4 Wires, 3PST Contact Form, NEMA 3R Enclosure, Surface Mounting, 10 in L x 15.52 in W x 25.23 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginUS
Dimensions10 in L x 15.52 in W x 25.23 in H
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
GTIN00782113213545
Horsepower15 hp, 25 to 60 hp
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
Number of Poles3
Number of Wires4
Package TypeEACH
Phase1/3
SeriesDG Series
Suitable For Use WithMolded Case Circuit Breaker
TypeCartridge Fusible General Duty
Type / StyleSafety Switch
Applications
Power Distribution Applications
Features
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series K general duty 200 A and higher
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
