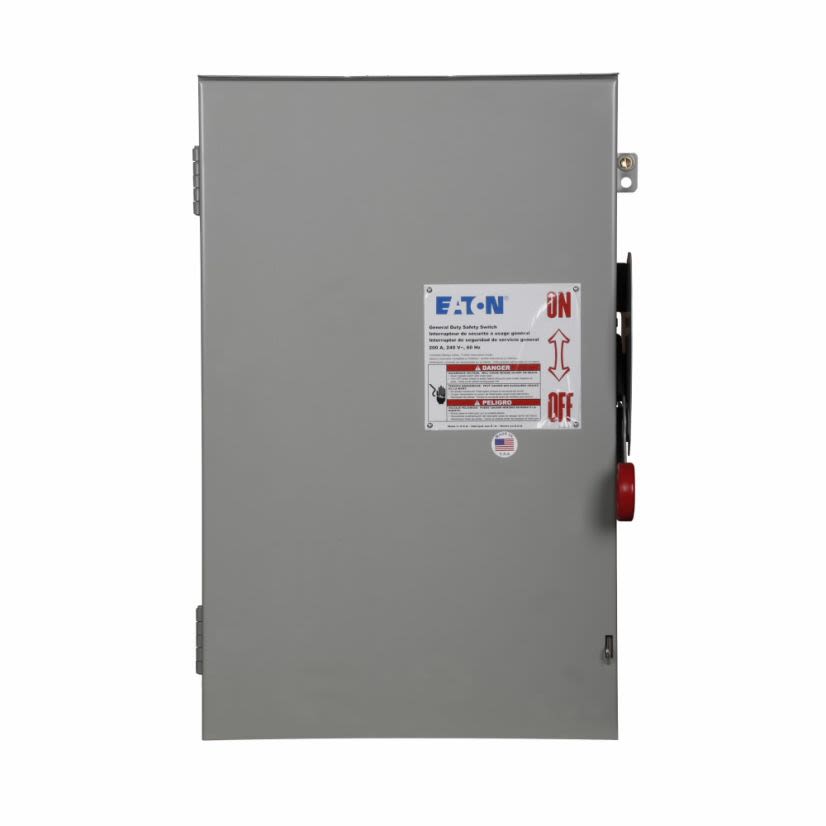

Cutler-Hammer Series DG224NRK
EATON DG224NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 200 A, 15 hp, 25 to 60 hp, 2 Poles
Cutler-Hammer Series DG224NRK
EATON DG224NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 200 A, 15 hp, 25 to 60 hp, 2 PolesIn Stock: 12more info
|
BrandCutler-Hammer Series
MFG #DG224NRK
Werner Part #24535
UPC782113213507
In Stock: 12more info
|
BrandCutler-Hammer Series
MFG #DG224NRK
Werner Part #24535
UPC782113213507
Product Description
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 V AC, 200 A, 15 hp, 25 to 60 hp, 1/3 ph, 2 Pole, 3 Wires, NEMA 3R Enclosure, Surface Mounting, 10 in L x 15.52 in W x 25.23 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginUS
Dimensions10 in L x 15.52 in W x 25.23 in H
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
GTIN00782113213507
Horsepower15 hp, 25 to 60 hp
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
Number of Poles2
Number of Wires3
Package Height25.5 in
Package Length27 in
Package TypeEACH
Package Weight55 lb
Package Width18 in
Phase1/3
Primary Connection/Pole1
Secondary Connection/Pole1
SeriesDG Series
Short Circuit Current Rating100 kA
Size of Wire4 AWG to 500 kcmil
TypeCartridge Fusible General Duty
Type / StyleSafety Switch
Applications
Power Distribution Applications
Features
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series K general duty 200 A and higher
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
