Cutler-Hammer Series DG221NGB

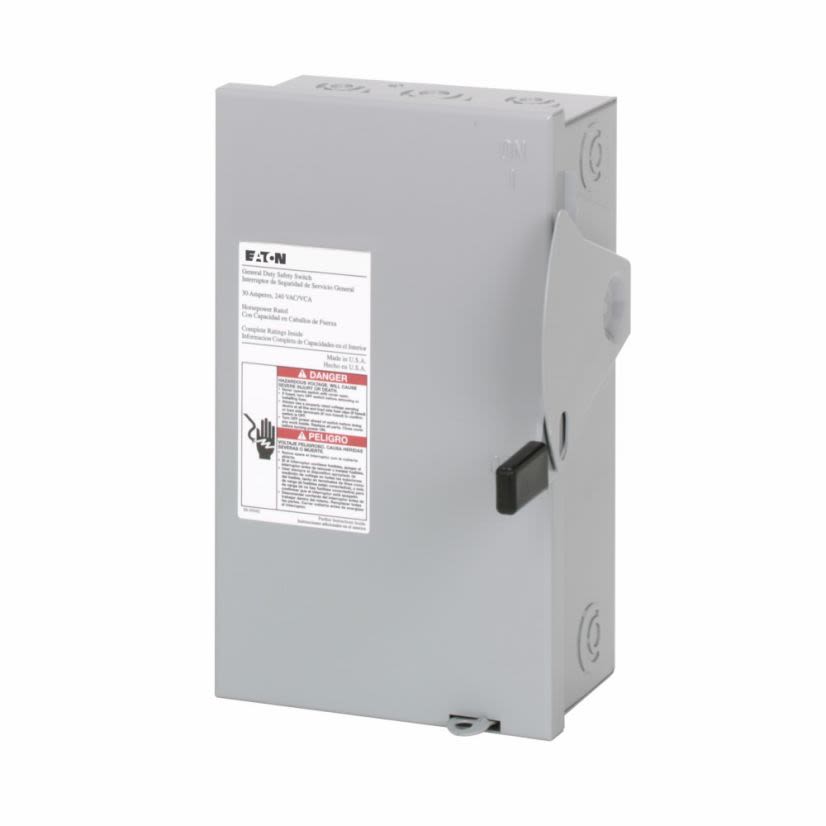

EATON DG221NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, DPST Contact, 2 Poles
EATON DG221NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, DPST Contact, 2 Poles

Cutler-Hammer Series DG221NGB

EATON DG221NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, DPST Contact, 2 Poles
In Stock: 24more info
|

BrandCutler-Hammer Series

MFG #DG221NGB

Werner Part #24523

UPC782113120171

In Stock: 24more info
|

BrandCutler-Hammer Series

MFG #DG221NGB

Werner Part #24523

UPC782113120171

Product Description

EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 V AC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, 1/3 ph, 2 Pole, 3 Wires, DPST Contact Form, NEMA 1 Enclosure, Surface Mounting, 5.73 in L x 6.1 in W x 6.5 in H Dimensions, Steel, Painted
Attributes
Connection TypeLine/Load
Country of OriginUS
Dimensions5.73 in L x 6.1 in W x 6.5 in H
Enclosure TypeNEMA 1
FinishPainted
FrameJ
Frequency Rating50/60 Hz
GTIN00782113120171
Horsepower1/2 to 3 hp, 3 to 7-1/2 hp
Interrupt Rating35/65 kA
ManufacturerEaton
MaterialSteel
Mounting TypeBolted-On
Number of Poles2
Number of Wires3
Package Height6.88 in
Package Length11.29 in
Package TypeEACH
Package Weight5.5 lb
Package Width7.25 in
Phase1/3
SeriesDG Series
Size of Wire4 AWG to 350 kcmil
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeCartridge Fusible General Duty
Type / StyleSafety Switch
