Cutler-Hammer Series DH362UGK

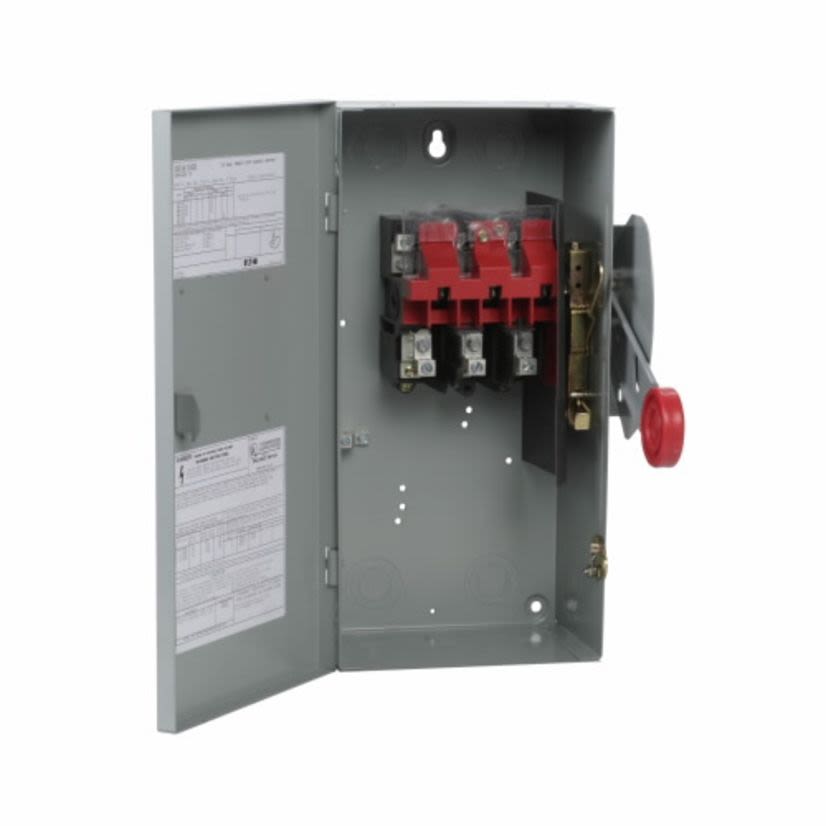

EATON DH362UGK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 60 A, 25 hp, 60 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH362UGK
EATON DH362UGK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 60 A, 25 hp, 60 hp, 3PST Contact, 3 PolesIn Stock: 4more info
|
In Stock: 4more info
|
Product Description
EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: DH Series, 600 V AC, 60 A, 25 hp, 60 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST, NEMA 1, Panel Mount, 16.5 in L x 9.12 in W x 8.31 in H, Steel, Painted
Attributes
Documents
Applications
Features
Specifications
Attributes
Actuator TypeHandle
Connection TypeLoad
Country of OriginUS
Dimensions16.5 in L x 9.12 in W x 8.31 in H
Enclosure TypeNEMA 1
FinishPainted
FrameF
Frequency Rating50/60 Hz
GTIN00782113206004
Horsepower25 hp, 60 hp
Interrupt Rating65 kA
ManufacturerEaton
MaterialSteel
Mounting TypePanel
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesDH Series
Temperature Rating40 deg C
Trip TypeFixed Thermal/Fixed Magnetic/Non-Interchangeable
TypeHeavy Duty Non-Fusible Single Throw
Type / StyleHeavy Duty Non-Fusible
Voltage600 VAC
Applications
Power Distribution Applications
Features
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- Non-fusible switches are 100% fully rated
- Suitable for service entrance applications unless otherwise noted
- Deionizing arc chutes, arc chutes confine and suppress the arcs produced by opening contacts under load
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- Clearly visible palm fitting red handle
- Premium 316 grade stainless steel enclosures offer better corrosion-resistance in the presence of most chemicals, salts and acids and is more-resistant to marine atmospheres
- Visible double-break quick make, Quick-break blades
- Visible ON/OFF indications
- 30 to 1200 A NEMA 12 designs convertible to NEMA 3R by opening factory installed drain hole
- Tri-lingual nameplates
- Design for all series K heavy duty
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
