Cutler-Hammer Series DH361UGK

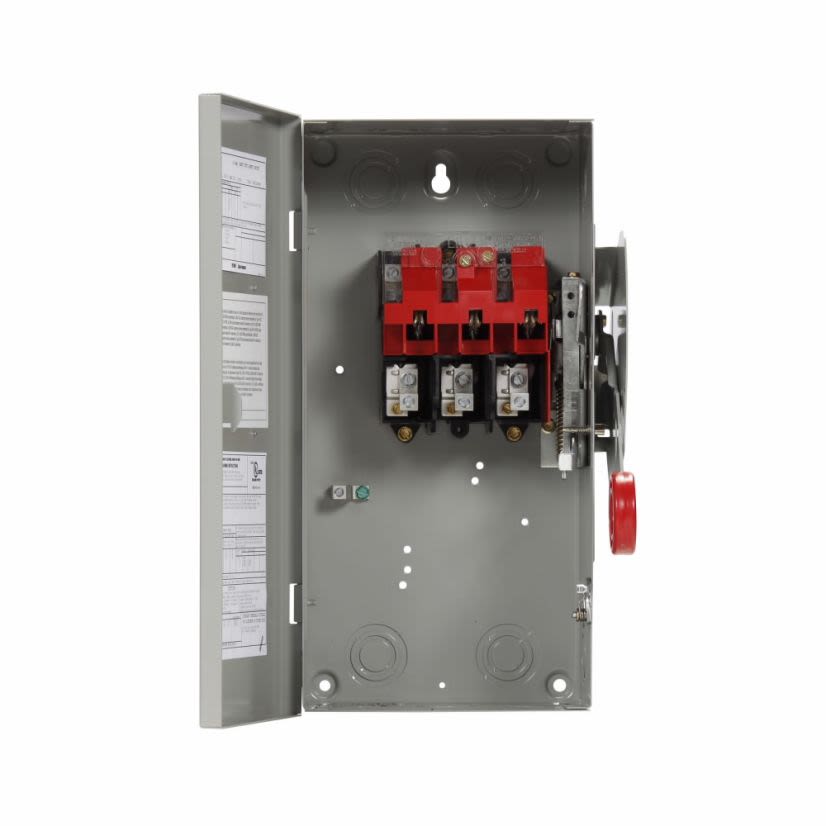

EATON DH361UGK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH361UGK
EATON DH361UGK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 3PST Contact, 3 PolesOut of Stockmore info
|
BrandCutler-Hammer Series
MFG #DH361UGK
Werner Part #24570
UPC782113205502
Out of Stockmore info
|
BrandCutler-Hammer Series
MFG #DH361UGK
Werner Part #24570
UPC782113205502
Product Description
EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 V AC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, 3PST, Handle Actuator, NEMA 1, Panel Mount, 16.5 in L x 9.12 in W x 8.31 in H, Steel, Painted
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Actuator TypeHandle
Country of OriginUS
Dimensions16.5 in L x 9.12 in W x 8.31 in H
Enclosure TypeNEMA 1
FinishPainted
GTIN00782113205502
Horsepower5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp
ManufacturerEaton
MaterialSteel
Mounting TypePanel
Number of Poles3
Number of Wires3
Package Height14.14 in
Package Length10.89 in
Package TypeEACH
Package Weight17 lb
Package Width9.81 in
Phase1/3
SeriesK Series
Short Circuit Current Rating200 kA
Suitable For Use WithStandard and Hi-Break Power Break II Breaker
TypeHeavy Duty Non-Fusible Single Throw
Type / StyleHeavy Duty Non-Fusible
Voltage600 VAC
Applications
Power Distribution, Commercial, Industrial and Indoor Applications
Features
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON-OFF) from a distance and provides for easy operation
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- 100% rated device means the switch may be used continuously up to its rated current
- Meets stringent UL 98 standards for safety, durability and reliability
- 7-1/2 hp at 480 VAC/10 hp at 600 VAC TD 1-phase, 10 hp at 240 VAC/20 hp at 480 VAC/30 hp at 600 VAC TD 3-phase, 5 hp at 250 VDC maximum hp rating
Specifications
2500 A
Warranty
1 year
