Crouse-Hinds series AFU0333 50

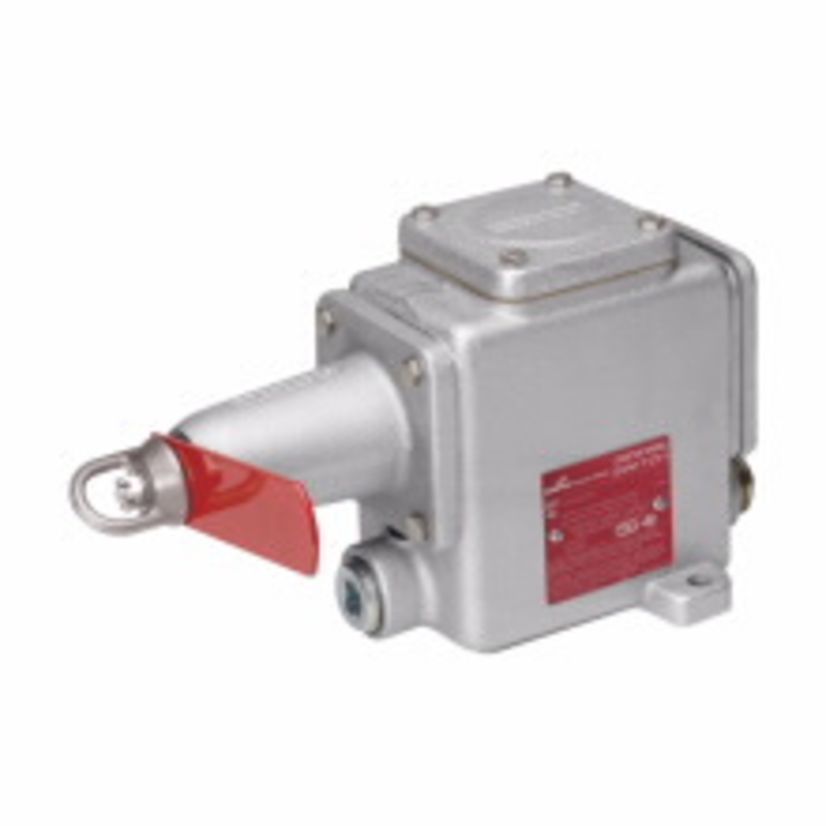

Crouse-Hinds Crouse-Hinds AFU0333 50 Explosionproof Single End Left Safety Snap action Conveyor Belt Control Switch, 600 VAC, 15 A, 2NO-2NC 2 Form C Contact
Crouse-Hinds series AFU0333 50
Crouse-Hinds Crouse-Hinds AFU0333 50 Explosionproof Single End Left Safety Snap action Conveyor Belt Control Switch, 600 VAC, 15 A, 2NO-2NC 2 Form C ContactNon-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #AFU0333 50
Werner Part #26280
UPC782274047126
Non-stock product. Available to order - lead time may vary.
BrandCrouse-Hinds series
MFG #AFU0333 50
Werner Part #26280
UPC782274047126
Product Description
Crouse-Hinds Crouse-Hinds Conveyor Belt Control Switch, Explosionproof Single End Left Safety Snap action, Series: AFU, 600 VAC, 15 A, 2NO-2NC 2 Form C Contact Form, Plunger Actuator, NEMA 3/4/9/9E/9F/9G/IP66 Enclosure, Lug Mounting, 9.5 in W x 5.68 in H Dimensions, Feraloy Iron Alloy
Attributes
Documents
Applications
Features
Specifications
Attributes
Actuator TypePlunger
Connection TypeLoad Lug
Country of OriginAustria
Dimensions9.5 in W x 5.68 in H
Enclosure TypeNEMA 3/4/9/9E/9F/9G/IP66
FrameTHQB
Interrupt Rating10 kA
ManufacturerEaton
MaterialFeraloy Iron Alloy
Mounting TypeBolted-On
Number of Poles2
Package TypeEACH
Phase1
SeriesAFU
Size of Wire6 to 1/0 AWG, 4 to 1/0 AWG
Temperature Rating60 to 75 deg C
Trip TypeLI/Non-Interchangeable Thermal Magnetic/Common
TypeExplosionproof Single End Left Safety Snap action
Type / StyleExplosionproof Replacement Single End Left Safety
Voltage600 VAC
Documents
Applications
Industrial Facility and Factories, Power Distribution and Controls, Steel Mills, Mining and Ore and Coal Handling Operations, Automotive and Other Assembly Lines, Warehouses, Loading Docks and Various Process Industry
Features
- As emergency or normal STOP switch for conveyor lines, cranes, unloaders, bulk handling systems and similar equipment
- 25 lb total operating force
- In the control circuit of magnetic motor starters to shut down motor driven conveyors or other machinery when switch is actuated
- Precision switches provide maintained contact switches have a snap action mechanism
- Multiple conduit hubs cast mounting lugs on 1-1/2 in centers permit attachment to the web of a standard 3 in angle iron
- In installation, the actuating line or cable is connected from a fixed point to the loop on the end unit
- A pull on the line of the required operating force and with a total movement of 1/2 in actuates the plunger
- Returning the indicating arm to its normal position resets the mechanism
- Depending on the size and length of line, supports at properly spaced intervals may be necessary to ensure that the line or cable weight alone will not actuate switch
- Explosionproof, dust ignitionproof and raintight
- Stainless steel plunger
- Bronze loop
- Steel indicating arm
- Electro-galvanized/aluminum acrylic painted
- 15 lb maximum weight of unsupported line or cable without actuating switch
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 Class II C, D, E, F, G, Class III|UL 698
