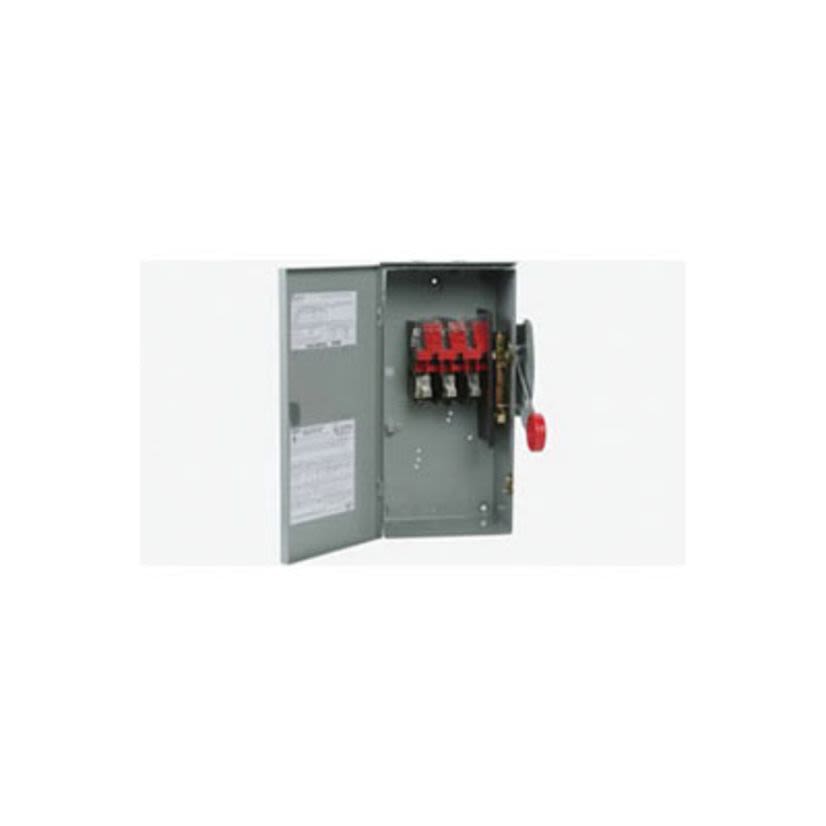

Cutler-Hammer Series DH362UWKX
EATON DH362UWKX Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH362UWKX
EATON DH362UWKX Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, 3PST Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH362UWKX
Werner Part #509116
UPC782114224281
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #DH362UWKX
Werner Part #509116
UPC782114224281
Product Description
EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 V AC, 60 A, 10 hp, 20 hp, 25 hp, 50 hp, 60 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST, NEMA 4X, 30 in L x 10 in W x 11 in H, 304 Stainless Steel
Attributes
Documents
Applications
Features
Attributes
ColorRed/Yellow
Country of OriginUS
Dimensions30 in L x 10 in W x 11 in H
Enclosure TypeNEMA 4X
Horsepower10 hp, 20 hp, 25 hp, 50 hp, 60 hp
ManufacturerEaton
Material304 Stainless Steel
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesK Series
TypeHeavy Duty Non-Fusible Single Throw
Type / StyleCorrosion-Resistant Heavy Duty Non-Fusible Single Throw
Voltage600 VAC
Applications
Commercial, Institutional Buildings, Structures, Power Distribution, Control and Harsh Environment Applications
Features
- Used to open or close a circuit
- Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
- Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
- Also commonly referred to as a disconnect switch or disconnect
- Easy to install
- Ample wiring space
- Non-fusible configuration
- Suitable for service entrance use with a neutral or ground lug kit installed
- EnviroLine stainless steel enclosure and mechanism
- 10 hp at 240 VAC/20 hp at 480 VAC/25 hp at 600 VAC TD 1-phase, 20 hp at 240 VAC/50 hp at 480 VAC/60 hp at 600 VAC TD 3-phase, 10 hp at 250 VDC maximum hp rating
