Cutler-Hammer Series DS362UX

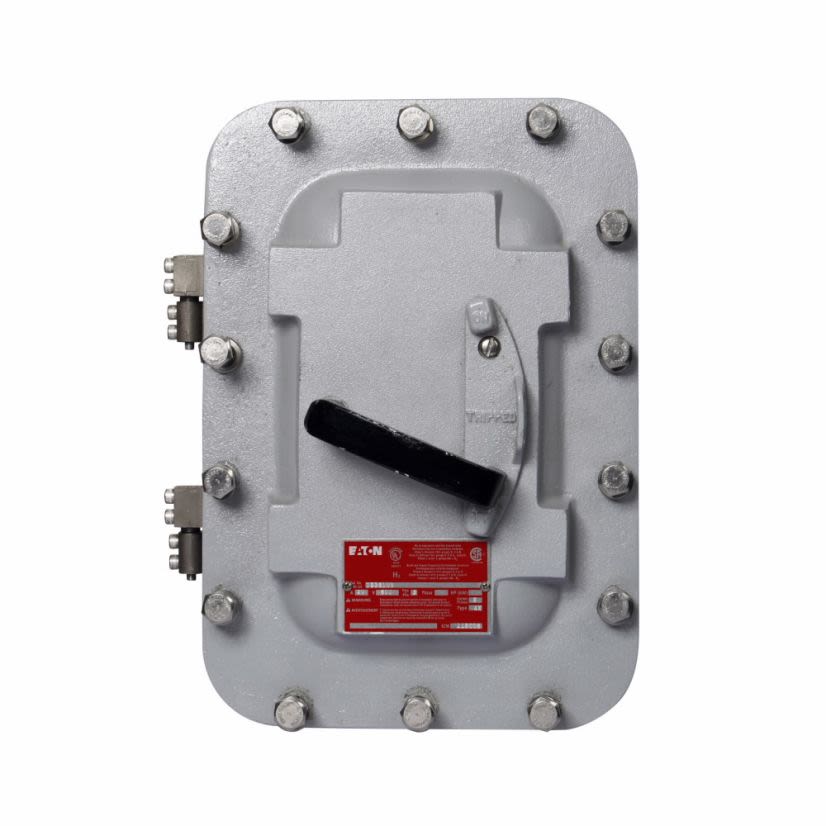

EATON DS362UX Heavy Duty Non-Fusible Disconnect Switch, 480/600 VAC, 250 VDC, 60 A, 10 hp, 30 hp, 50 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DS362UX
EATON DS362UX Heavy Duty Non-Fusible Disconnect Switch, 480/600 VAC, 250 VDC, 60 A, 10 hp, 30 hp, 50 hp, 3PST Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Disconnect Switch, Heavy Duty Non-Fusible, 480/600 VAC, 250 VDC, 60 A, 10 hp, 30 hp, 50 hp, 3 Pole, 3PST Contact Form, Handle Actuator, NEMA 7/9 Enclosure, Surface Mounting, Line/Load Terminal, 55 deg C, 9.9 in L x 12.53 in W x 16.53 in H Dimensions, Cast Aluminum
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeHandle
Breaker TypeTHQL
Country of OriginMX
Dimensions9.9 in L x 12.53 in W x 16.53 in H
Enclosure Box SizeNEMA 11
Enclosure TypeNEMA 7/9
Horsepower10 hp, 30 hp, 50 hp
Interrupt Rating22 kA
ManufacturerEaton
MaterialCast Aluminum
Mounting TypeFlush
Number of Circuits24
Number of Poles3
Number of Spaces36
Package TypeEACH
Size of Wire1 to 3/0 AWG, 3/0 to 2/0 AWG
Temperature Rating55 deg C
Terminal TypeLine/Load
TypeHeavy Duty Non-Fusible
Type / StyleHeavy Duty Non-Fusible
Voltage480/600 VAC, 250 VDC
Wiring Configuration4-Wire
Applications
Commercial, Institutional Buildings, Structures - Power Distribution, Control, Petrochemical Facilities, Mining Operations, Pharmaceutical Plants, Waste Water Treatment Facilities Applications
Warranty
1 year
Features
- Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- Meets stringent UL 98 standards for safety, durability and reliability
- EnviroLine stainless steel enclosure and mechanism
