Appleton EDS6036

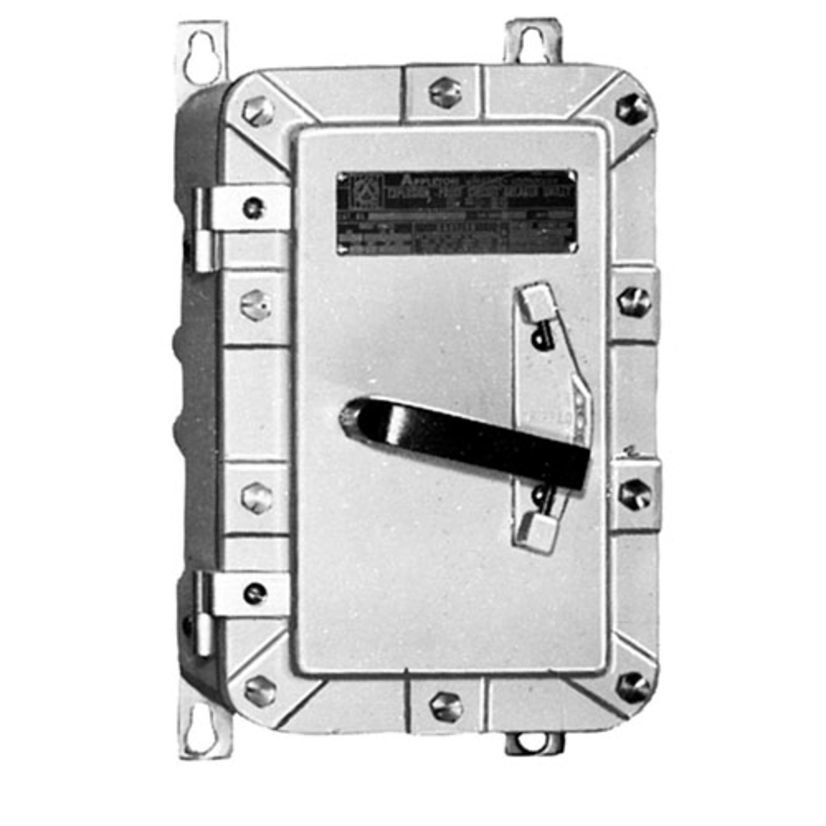

Appleton EDS6036 Dust-Ignitionproof Explosionproof Heavy Duty Non Fusible Disconnect Switch, 600 V AC, 60 A, 60 hp, 3PST Contact Form, 3 Poles
Appleton EDS6036
Appleton EDS6036 Dust-Ignitionproof Explosionproof Heavy Duty Non Fusible Disconnect Switch, 600 V AC, 60 A, 60 hp, 3PST Contact Form, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDS6036
Werner Part #1113167
UPC781381239882
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDS6036
Werner Part #1113167
UPC781381239882
Product Description
Appleton Disconnect Switch, Dust-Ignitionproof Explosionproof Heavy Duty Non Fusible, Series: EDS, 600 V AC, 60 A, 60 hp, 3 Phase, 3 Pole, 3 Wires, 3PST Contact Form, Internal Handle Actuator, NEMA 3R/4/4X/7BCD/9EFG Enclosure, Spring Mounting, 14.75 in H x 8.25 in W x 8.88 in D Dimensions, Copper Free Aluminum, Epoxy Enamel Finish
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeInternal Handle
ColorBlack
Country of OriginUS
Dimensions14.75 in H x 8.25 in W x 8.88 in D
Enclosure TypeNEMA 3R/4/4X/7BCD/9EFG
FinishEpoxy Enamel
Horsepower60 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
Number of Poles3
Number of Wires3
Package TypeEACH
Phase3
Primary Connection/Pole1
Secondary Connection/Pole9
SeriesEDS
Short Circuit Current Rating10 kA
Size of Wire2 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu/8 to 2 AWG Al, (3) 14 to 1/0 AWG Cu, 8 to 1/0 AWG Al Load
TypeDust-Ignitionproof Explosionproof Heavy Duty Non Fusible
Type / StyleDust-Ignitionproof Explosionproof Heavy Duty Non Fusible
Voltage600 VAC
Documents
Applications
Used to functions as load disconnect switch or as individual motor control switch and use with heavy duty loads in hazardous environments
Warranty
Limited
Features
- Hinged, removable cover provides instant access for installation and servicing
- Self locating, spring mounted internal handle actuator
- Rugged handle has stainless steel shaft within a stainless steel bushing, may be locked in On or Off position
- Removable mounting plate simplifies installation
- Top and bottom standard feed-through conduit openings
- Removable reducer bushing furnished with each opening
- Additional top and bottom openings for drain and breather, supplied with close-up plugs
- Covers have captive, slotted, stainless steel screws to prevent freezing
