Appleton EDS3036

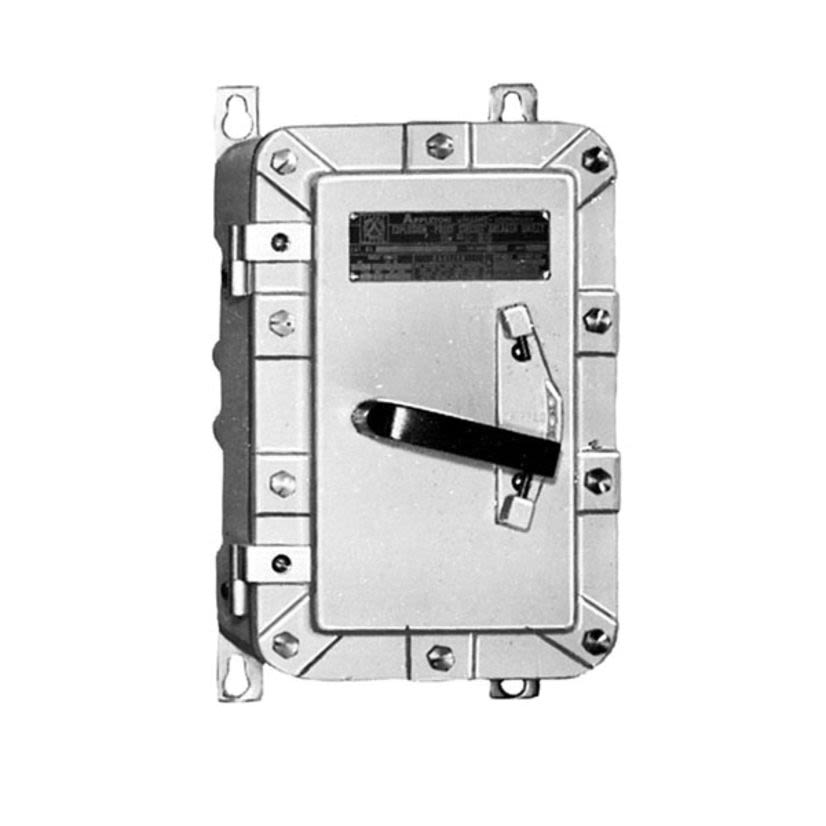

Appleton EDS3036 Dust-Ignitionproof Explosionproof Heavy Duty Non Fusible Disconnect Switch, 600 V AC, 30 A, 25 hp, 3PST Contact Form, 3 Poles
Appleton EDS3036
Appleton EDS3036 Dust-Ignitionproof Explosionproof Heavy Duty Non Fusible Disconnect Switch, 600 V AC, 30 A, 25 hp, 3PST Contact Form, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDS3036
Werner Part #1137272
UPC781381239875
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDS3036
Werner Part #1137272
UPC781381239875
Product Description
Appleton Disconnect Switch, Dust-Ignitionproof Explosionproof Heavy Duty Non Fusible, Series: EDS, 600 V AC, 30 A, 25 hp, 3 Phase, 3 Pole, 3 Wires, 3PST Contact Form, Internal Handle Actuator, NEMA 3R/4/4X/7BCD/9EFG Enclosure, Spring Mounting, 16.75 in H x 9.63 in W x 7.25 in D Dimensions, Copper Free Aluminum, Epoxy Enamel Finish
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeInternal Handle
Country of OriginUS
Dimensions16.75 in H x 9.63 in W x 7.25 in D
Enclosure TypeNEMA 3R/4/4X/7BCD/9EFG
FinishEpoxy Enamel
Horsepower25 hp
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
Mounting TypePanel
Number of Poles3
Number of Wires3
Package TypeEACH
Phase3
SeriesEDS
Short Circuit Current Rating100 kA
TypeDust-Ignitionproof Explosionproof Heavy Duty Non Fusible
Type / StyleDust-Ignitionproof Explosionproof Heavy Duty Non Fusible
Voltage600 VAC
Documents
Applications
Used to functions as load disconnect switch or as individual motor control switch and use with heavy duty loads in hazardous environments
Warranty
Limited
Features
- Hinged, removable cover provides instant access for installation and servicing
- Self locating, spring mounted internal handle actuator
- Rugged handle has stainless steel shaft within a stainless steel bushing, may be locked in On or Off position
- Removable mounting plate simplifies installation
- Top and bottom standard feed-through conduit openings
- Removable reducer bushing furnished with each opening
- Additional top and bottom openings for drain and breather, supplied with close-up plugs
- Covers have captive, slotted, stainless steel screws to prevent freezing
