Appleton AEAB6036DS

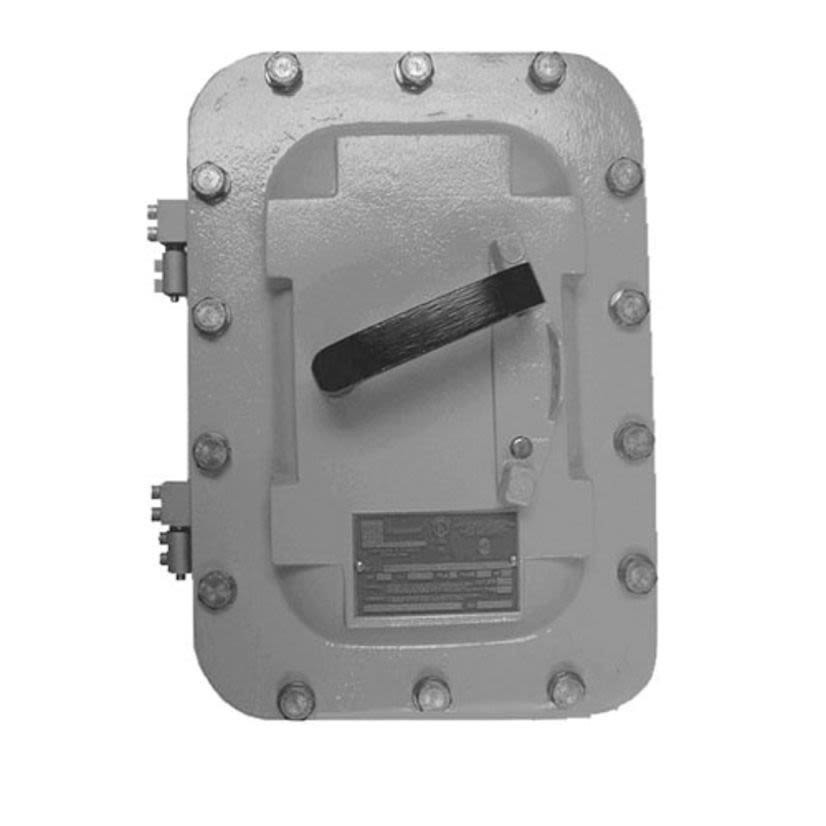

Appleton AEAB6036DS Dust-Ignitionproof Explosionproof Hinged Non Fused Disconnect Switch, 600 V AC/120 to 250 V DC, 60 A, 60 hp, 15 hp, 3 Poles
Appleton AEAB6036DS
Appleton AEAB6036DS Dust-Ignitionproof Explosionproof Hinged Non Fused Disconnect Switch, 600 V AC/120 to 250 V DC, 60 A, 60 hp, 15 hp, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #AEAB6036DS
Werner Part #1110729
UPC781381848039
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #AEAB6036DS
Werner Part #1110729
UPC781381848039
Product Description
Appleton Disconnect Switch, Dust-Ignitionproof Explosionproof Hinged Non Fused, Series: AE Series, 600 V AC/120 to 250 V DC, 60 A, 60 hp, 15 hp, 3 ph, 3 Pole, 3 Wires, External Handle Actuator, NEMA 4/4X/7/9 Enclosure, Bolt Mounting, Ground Lug Terminal, 15.25 in H x 10.63 in W x 8.84 in D Dimensions, Copper Free Aluminum, Gray, Epoxy Powder Coated
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeExternal Handle
ColorGray
Connection TypeLoad Lug
Country of OriginUS
Dimensions15.25 in H x 10.63 in W x 8.84 in D
Enclosure TypeNEMA 4/4X/7/9
FinishEpoxy Powder Coated
FrameTHQB
Horsepower60 hp, 15 hp
Interrupt Rating10 kA
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
Mounting TypeBolted-On
Number of Poles3
Number of Wires3
Package TypeEACH
Phase3
SeriesAE Series
Size of Wire14 to 8 AWG, 12 to 8 AWG
Temperature Rating60 to 75 deg C
Terminal TypeGround Lug
Trip TypeLI/Non-Interchangeable Thermal Magnetic
TypeDust-Ignitionproof Explosionproof Hinged Non Fused
Type / StyleDust-Ignitionproof Explosionproof Hinged Non Fused
Voltage600/120 to 250 VAC/VDC
Documents
Applications
Overload and Short Circuit Protection, Control of Lighting and Power Circuits Applications
Warranty
Limited
Features
- Precision machined flame path between box and cover, O-ring gasket ensures watertight integrity
- Bolt-On stainless steel slotted mounting feet
- Stainless steel, captive Quad-Lead cover bolts are standard
- Ground lug package and installation instructions for termination of ground wire enclosed
- External operating handle with stops for limiting handle travel
- Disconnects operators can be locked in the On or Off position
- External flange maximizes internal space
- Standard outlets top and bottom for line and load wiring
- Plugged 1/2 in outlets top and bottom for breather and drain
- Disconnects mounted on a galvanized steel removable pan
