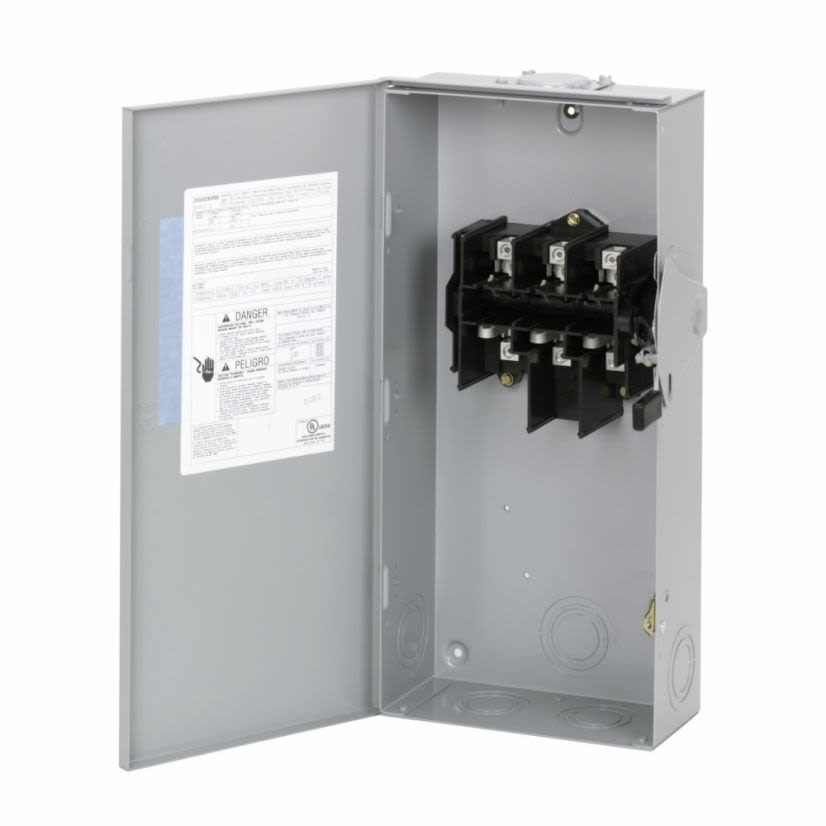

Cutler-Hammer Series DG323URB
EATON DG323URB DG Series Non-Fusible Rainproof General Duty Safety Switch, 240 V AC, 100 A, 15 hp, 30 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DG323URB
EATON DG323URB DG Series Non-Fusible Rainproof General Duty Safety Switch, 240 V AC, 100 A, 15 hp, 30 hp, 3PST Contact, 3 PolesIn Stock: 1more info
|
BrandCutler-Hammer Series
MFG #DG323URB
Werner Part #24549
UPC782113144375
In Stock: 1more info
|
BrandCutler-Hammer Series
MFG #DG323URB
Werner Part #24549
UPC782113144375
Product Description
EATON General Duty Safety Switch, Non-Fusible Rainproof, Series: DG Series, 240 V AC, 100 A, 15 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST Contact Form, NEMA 3R Enclosure, Surface Mounting, 6.42 in L x 8.82 in W x 7.5 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Applications
Features
Attributes
Country of OriginUS
Dimensions6.42 in L x 8.82 in W x 7.5 in H
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
Frequency Rating20/66 Hz
Horsepower15 hp, 30 hp
ManufacturerEaton
MaterialSteel
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesDG Series
TypeNon-Fusible Rainproof
Applications
Power Distribution Applications
Features
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
- Non-fusible switches are 100% fully rated
- 200 to 600A features K-series design
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Design for series B general duty 30 to 100 A
