Cutler-Hammer Series DG321UGB

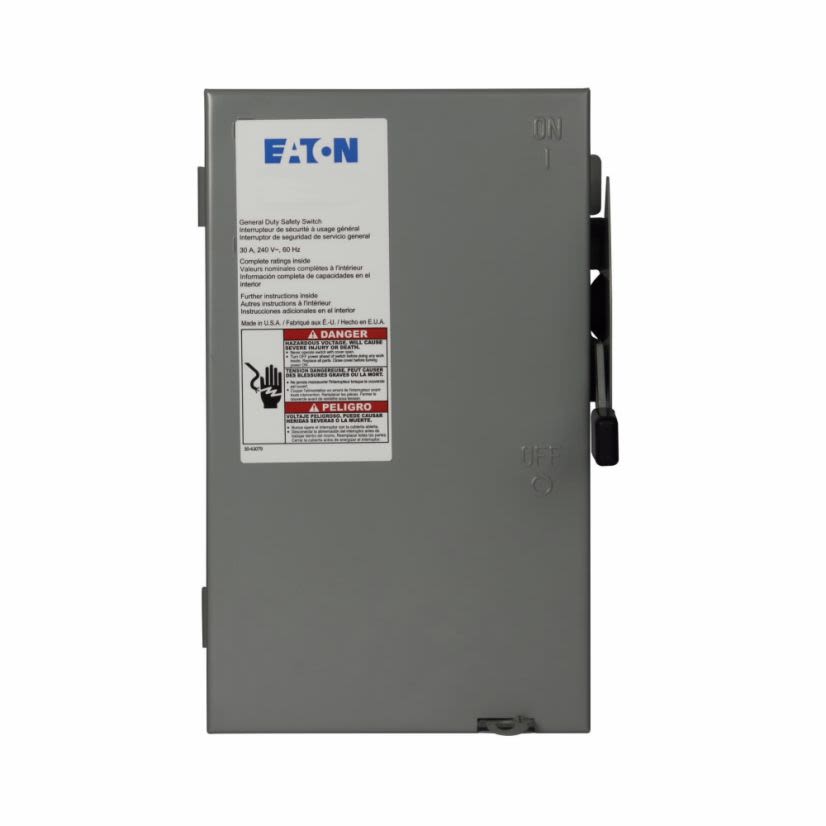

EATON DG321UGB DG Series Non-Fusible General Duty Safety Switch, 240 V AC, 30 A, 3 hp, 7-1/2 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DG321UGB
EATON DG321UGB DG Series Non-Fusible General Duty Safety Switch, 240 V AC, 30 A, 3 hp, 7-1/2 hp, 3PST Contact, 3 PolesIn Stock: 6more info
|
BrandCutler-Hammer Series
MFG #DG321UGB
Werner Part #24540
UPC782113120140
In Stock: 6more info
|
BrandCutler-Hammer Series
MFG #DG321UGB
Werner Part #24540
UPC782113120140
Product Description
EATON General Duty Safety Switch, Non-Fusible, Series: DG Series, 240 V AC, 30 A, 3 hp, 7-1/2 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST Contact Form, NEMA 1 Enclosure, Panel Mounting, 5.73 in L x 6.1 in W x 6.25 in H Dimensions, Steel, Painted
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginUS
Dimensions5.73 in L x 6.1 in W x 6.25 in H
Enclosure TypeNEMA 1
FinishPainted
GTIN00782113120140
Horsepower3 hp, 7-1/2 hp
ManufacturerEaton
MaterialSteel
Mounting TypePanel
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesDG Series
Suitable For Use WithPowerMark PlusĆ¢āĀ¢ Load Center
TypeNon-Fusible
Type / StyleSafety Switch
Applications
Indoor and Power Distribution Applications
Features
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
- Non-fusible switches are 100% fully rated
- 200 to 600A features K-series design
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Design for series B general duty 30 to 100 A
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
