Cutler-Hammer Series DG223URB

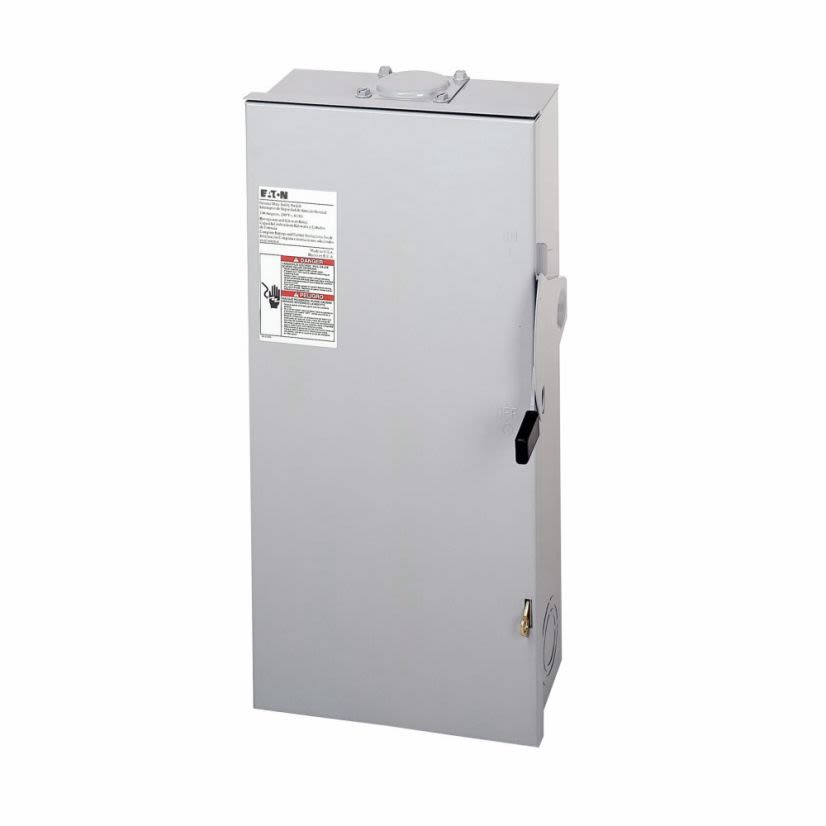

EATON DG223URB B Series General Duty Non-Fusible Rainproof Safety Switch, 240 V AC, 100 A, 15 hp, DPST Contact, 2 Poles
Cutler-Hammer Series DG223URB
EATON DG223URB B Series General Duty Non-Fusible Rainproof Safety Switch, 240 V AC, 100 A, 15 hp, DPST Contact, 2 PolesIn Stock: 11more info
|
BrandCutler-Hammer Series
MFG #DG223URB
Werner Part #24533
UPC782114731154
In Stock: 11more info
|
BrandCutler-Hammer Series
MFG #DG223URB
Werner Part #24533
UPC782114731154
Product Description
EATON Safety Switch, General Duty Non-Fusible Rainproof, Series: B Series, 240 V AC, 100 A, 15 hp, 1 ph, 2 Pole, 2 Wires, DPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 7.38 x 9.13 x 19.25 in Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Features
Applications
Attributes
Country of OriginUS
Dimensions7.38 x 9.13 x 19.25 in
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
Height48.895 cm
Horsepower15 hp
Length49.53 cm
ManufacturerEaton
MaterialSteel
Number of Poles2
Number of Wires2
Package TypeEACH
Phase1
SeriesB Series
TypeGeneral Duty Non-Fusible Rainproof
Voltage240 V
Width26.035 cm
Features
- Used to open or close a circuit
- Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
- Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
- Also commonly referred to as a disconnect switch or disconnect
- Design general duty 30 to 100 A
Applications
Commercial, Institutional Buildings, Control, Power Distribution Applications
