Cutler-Hammer Series C361NF1

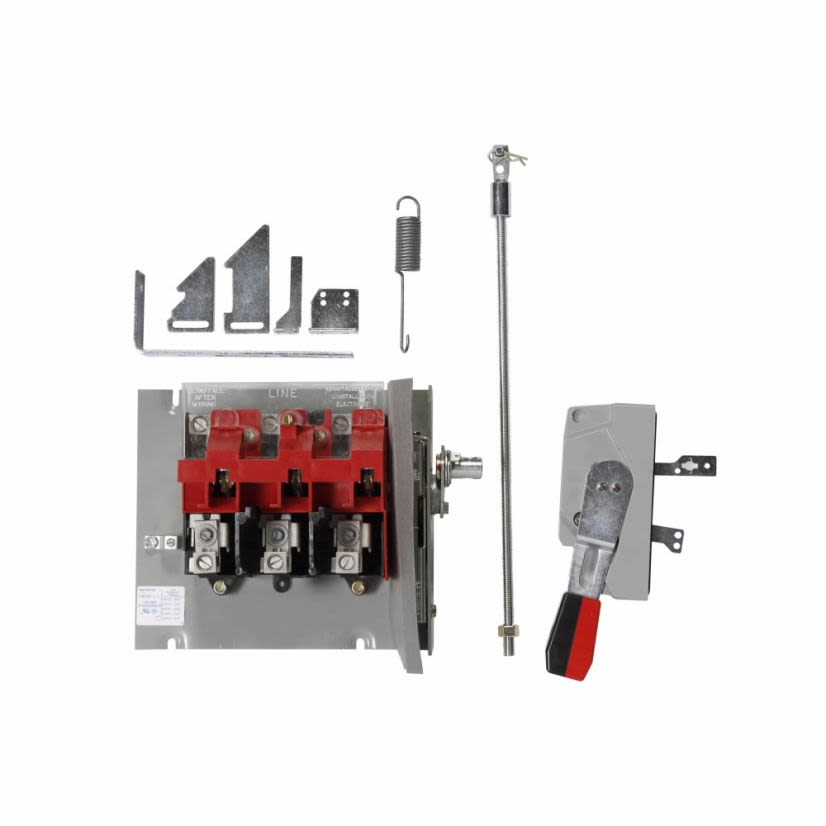

EATON C361NF1 Type C361 Non-Fusible Variable Depth Disconnect Switch and Operating Mechanism, 600 V AC/250 V DC, 200 A, 40 hp, 60 hp, 125 hp, 150 hp
Cutler-Hammer Series C361NF1
EATON C361NF1 Type C361 Non-Fusible Variable Depth Disconnect Switch and Operating Mechanism, 600 V AC/250 V DC, 200 A, 40 hp, 60 hp, 125 hp, 150 hpNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Disconnect Switch and Operating Mechanism, Type C361 Non-Fusible Variable Depth, 600 V AC/250 V DC, 200 A, 40 hp, 60 hp, 125 hp, 150 hp, 3 Phase, Padlock-off Handle Actuator, NEMA 1/12, Flange/Right Hand Mount, Line/Lug Terminal, 25.344 in L x 17.813 in W x 10.438 in H
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypePadlock-Off Handle
Connection TypeLine/Load/Pressure
Country of OriginUS
Dimensions25.344 in L x 17.813 in W x 10.438 in H
Enclosure TypeNEMA 1/12
FrameK
Frequency Rating50/60 Hz
Horsepower40 hp, 60 hp, 125 hp, 150 hp
Interrupt Rating65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 10 kA at 250 VDC
ManufacturerEaton
Mounting TypeSurface
Number of Poles3
Package TypeEACH
Phase3
SeriesC Series
Size of Wire250 to 500 kcmil Al/Cu
Temperature Rating40 deg C
Terminal TypeLine/Lug
Trip TypeInterchangeable Thermal-Magnetic
TypeType C361 Non-Fusible Variable Depth
Type / StyleType C361 Non-Fusible Variable Depth
Voltage600 VAC, 250 VDC
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Warranty
1 year
Features
- Switch and operating mechanism with 4 in handle
- 7 to 16 in D range
- 40 hp at 208 VAC, 60 hp at 240 VAC, 125 hp at 480 VAC, 150 hp at 600 VAC, 40 hp at 250 VDC maximum hp rating
