Cutler-Hammer Series DH361FGK
EATON DH361FGK DH Series Heavy Duty Fusible Safety Switch, 600 V AC, 30 A, 10 hp, 20 hp, 3PST Contact, 3 Poles
Cutler-Hammer Series DH361FGK
EATON DH361FGK DH Series Heavy Duty Fusible Safety Switch, 600 V AC, 30 A, 10 hp, 20 hp, 3PST Contact, 3 PolesIn Stock: 21more info
|
In Stock: 21more info
|
Product Description

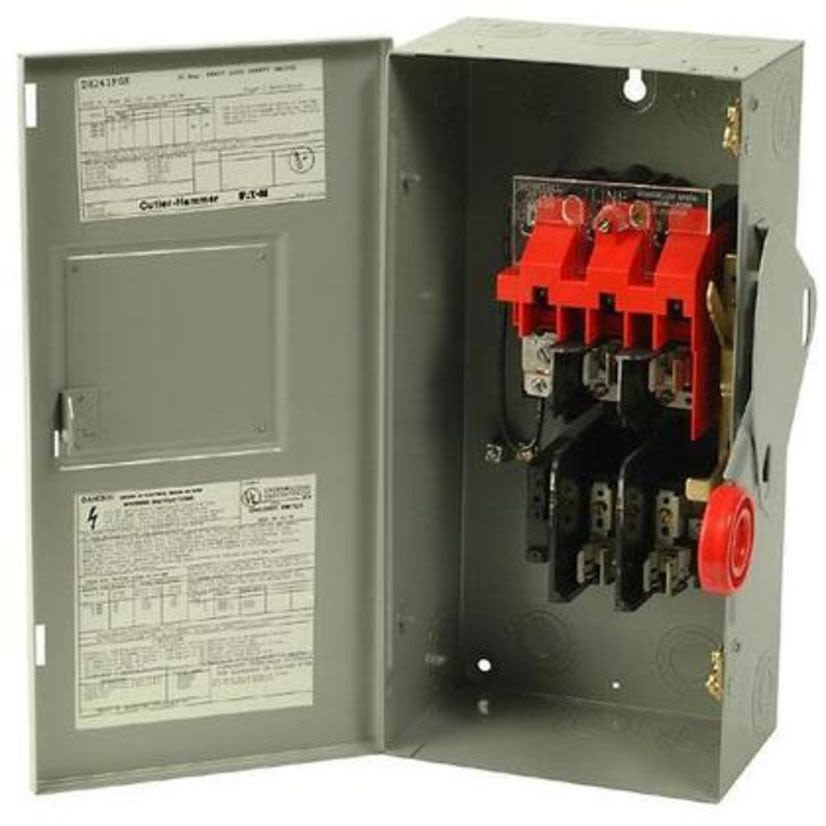

EATON Safety Switch, Heavy Duty Fusible, Series: DH Series, 600 V AC, 30 A, 10 hp, 20 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST, Class H Insulation, NEMA 1, Surface Mount, 22-1/2 in L x 9-1/2 in W x 9 in H, Steel, Painted
Attributes
Documents
Applications
Features
Specifications
Attributes
Country of OriginUS
Dimensions22-1/2 in L x 9-1/2 in W x 9 in H
Enclosure TypeNEMA 1
FinishPainted
GTIN00782113205489
Horsepower10 hp, 20 hp
Insulation TypeClass H
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
NEMA RatingNEMA 1
Number of Poles3
Number of Wires3
Package TypeEACH
Phase1/3
SeriesDH Series
Suitable For Use WithFused Disconnect Switches
TypeHeavy Duty Fusible
Type / StyleHeavy Duty Fusible Single Throw
Voltage600 V
Documents
Applications
Commercial, Institutional Buildings, Structures, Power Distribution and Control Applications
Features
- Quick make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip designed for hook stick operation
- Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the Off position with up to three padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens 180 deg for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper/aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible On/Off indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy two or three point mounting
Specifications
ARRA Compliant|BAA Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
