Cutler-Hammer Series DG222NRB

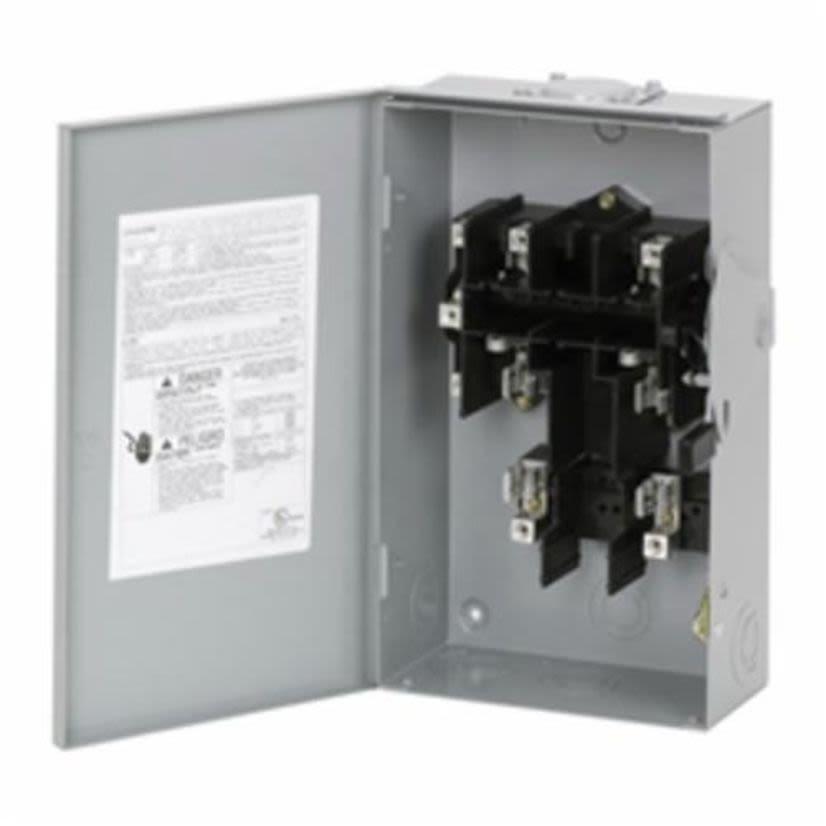

EATON DG222NRB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, DPST Contact, 2 Poles
Cutler-Hammer Series DG222NRB
EATON DG222NRB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, DPST Contact, 2 PolesIn Stock: 20more info
|
BrandCutler-Hammer Series
MFG #DG222NRB
Werner Part #24527
UPC782113144221
In Stock: 20more info
|
BrandCutler-Hammer Series
MFG #DG222NRB
Werner Part #24527
UPC782113144221
Product Description
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 V AC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, 1/3 ph, 2 Pole, 3 Wires, DPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 6.41 in L x 8.4 in W x 7 in H Dimensions, Steel, Galvanized/Painted
Attributes
Documents
Applications
Features
Specifications
Attributes
Breaker TypeBR/CSR
Country of OriginUS
Dimensions6.41 in L x 8.4 in W x 7 in H
Enclosure Box SizeX6
Enclosure TypeNEMA 3R
FinishGalvanized/Painted
GTIN00782113144221
Horsepower3 to 10 hp, 7-1/2 to 15 hp
Housing MaterialGalvanized Steel
Interrupt Rating25 kA
ManufacturerEaton
MaterialSteel
Mounting TypePlug-On
Number of Circuits30
Number of Poles2
Number of Spaces30
Number of Wires3
Package TypeEACH
Phase1/3
SeriesDG Series
Size of Wire2 AWG to 300 kcmil
TypeCartridge Fusible General Duty
Type / StyleCartridge Fusible General Duty
Voltage240 VAC
Wiring Configuration3-Wire
Applications
Power Distribution Applications
Features
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series B general duty 30 to 100 A
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
