Cutler-Hammer Series DPU362RA

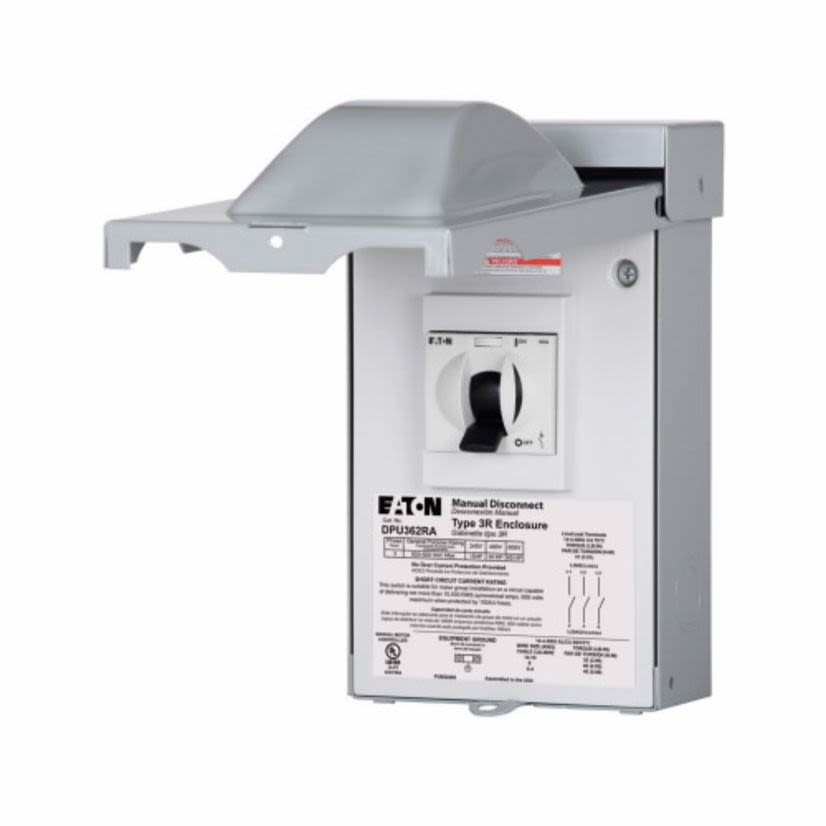

EATON DPU362RA Non-Fused Air Conditioning Disconnect, 240/480 V AC, 60 A, 15 hp, 30 hp, 3 Poles
Cutler-Hammer Series DPU362RA
EATON DPU362RA Non-Fused Air Conditioning Disconnect, 240/480 V AC, 60 A, 15 hp, 30 hp, 3 PolesIn Stock: 4more info
|
In Stock: 4more info
|
Product Description
EATON Air Conditioning Disconnect, Non-Fused, 240/480 V AC, 60 A, 15 hp, 30 hp, 3 ph, 3 Pole, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 60 to 75 deg C, 9 in L x 5-1/2 in W x 9 in H Dimensions, Steel, Gray, Hot Dipped Galvanized
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginMX
Dimensions9 in L x 5-1/2 in W x 9 in H
Enclosure TypeNEMA 3R
FinishHot Dipped Galvanized
Horsepower15 hp, 30 hp
ManufacturerEaton
MaterialSteel
Number of Poles3
Package TypeEACH
Phase3
Short Circuit Current Rating10 kA
Temperature Rating60 to 75 deg C
TypeNon-Fused
Type / StyleAir Conditioning Non-Fused
Voltage240/480 VAC
Documents
Applications
Electrical Assemblies, EOEMs, Panels and Power Distribution Applications
Features
- ON/OFF control provided by a Pull-out handle
- Pull-out handle can be conveniently stored in the compartment in the Off position, helping to prevent the handle from being misplaced
- Protective shield cannot be removed until the pullout handle is removed, disconnecting the power
- 14 to 4 AWG copper/aluminum wire
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
