Cutler-Hammer Series DPF221R

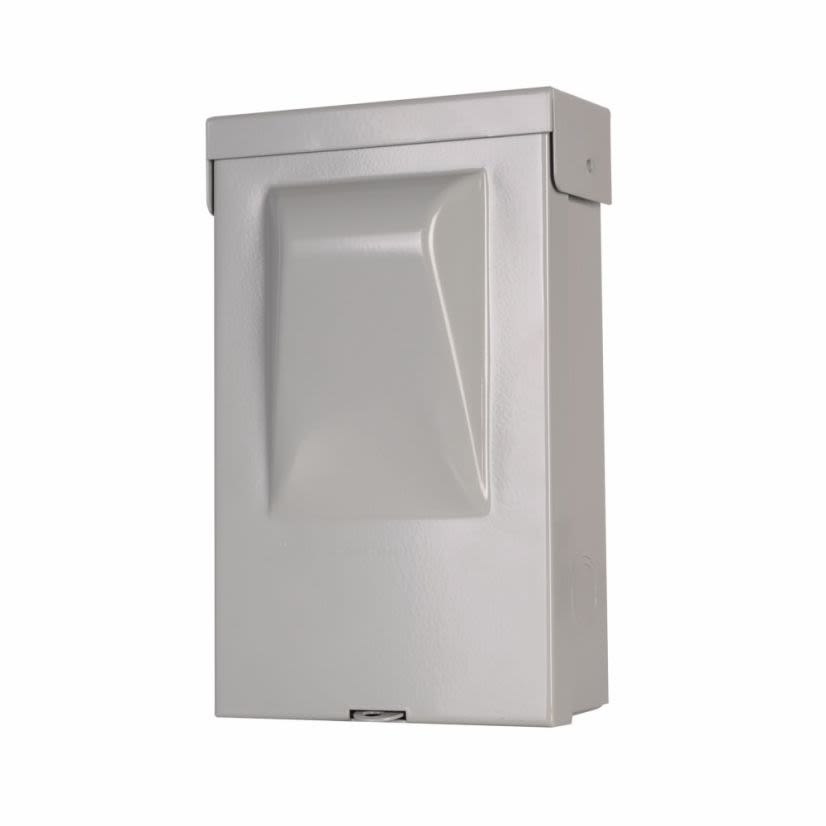

EATON DPF221R Fused Pullout Air Conditioning Disconnect, 120/240 V AC, 30 A, 2 hp, 3 hp, 2 Poles
Cutler-Hammer Series DPF221R
EATON DPF221R Fused Pullout Air Conditioning Disconnect, 120/240 V AC, 30 A, 2 hp, 3 hp, 2 PolesIn Stock: 8more info
|
In Stock: 8more info
|
Product Description
EATON Air Conditioning Disconnect, Fused Pullout, 120/240 V AC, 30 A, 2 hp, 3 hp, 1 ph, 2 Pole, 2 Wires, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 60 to 75 deg C, 5.4 in L x 3.15 in W x 8.7 in H Dimensions, Steel, Gray, Hot Dipped Galvanized
Attributes
Documents
Applications
Features
Attributes
Breaker TypeTHQL/THQP
ColorGray
Country of OriginMX
Dimensions5.4 in L x 3.15 in W x 8.7 in H
Enclosure Box SizeNEMA R1A
Enclosure TypeNEMA 3R
FinishHot Dipped Galvanized
Horsepower2 hp, 3 hp
Interrupt Rating10 kA
ManufacturerEaton
MaterialSteel
Mounting TypeSurface
Number of Circuits4
Number of Poles2
Number of Spaces4
Number of Wires2
Package TypeEACH
Phase1
Short Circuit Current Rating10 kA
Size of Wire1 to 2/0 AWG
Temperature Rating60 to 75 deg C
TypeFused Pullout
Type / StyleFused Pullout
Voltage120/240 VAC
Wiring Configuration3-Wire
Applications
Electrical Assemblies, EOEMs, Panels and Power Distribution Applications
Features
- Low voltage residential load centers AC disconnects
- Pullout ACD fused steel are residential enclosures AC disconnects
