Cutler-Hammer Series DPB222R

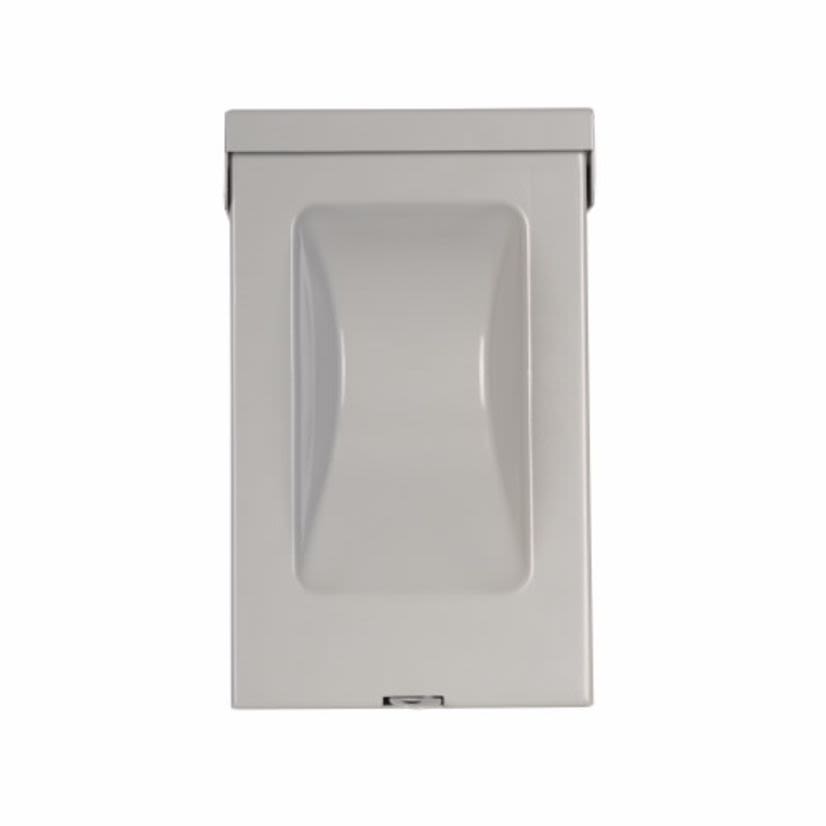

EATON DPB222R Molded Case Air Conditioning Disconnect Switch, 240 V AC, 60 A, 10 hp, 2 Poles
Cutler-Hammer Series DPB222R
EATON DPB222R Molded Case Air Conditioning Disconnect Switch, 240 V AC, 60 A, 10 hp, 2 PolesIn Stock: 6more info
|
In Stock: 6more info
|
Product Description
EATON Air Conditioning Disconnect Switch, Molded Case, 240 V AC, 60 A, 10 hp, 1 ph, 2 Pole, 2 Wires, 10 kA Short Circuit, NEMA 3R Enclosure, Surface Mounting, 60 to 75 deg C, 5.3 in L x 3.74 in W x 8.6 in H Dimensions, Steel, Gray, Hot Dipped Galvanized
Attributes
Documents
Applications
Features
Attributes
ColorGray
Country of OriginMX
Dimensions5.3 in L x 3.74 in W x 8.6 in H
Enclosure TypeNEMA 3R
FinishHot Dipped Galvanized
Horsepower10 hp
ManufacturerEaton
MaterialSteel
Number of Poles2
Number of Wires2
Package TypeEACH
Phase1
Short Circuit Current Rating10 kA
Suitable For Use WithPowerMark Series Gold and Plus Center
Temperature Rating60 to 75 deg C
TypeMolded Case
Type / StyleMolded Case
Voltage240 VAC
Documents
Applications
Power Distribution Applications
Features
- Air conditioning disconnects (ACD) are located between a load center (distribution panel) and an air conditioner
- ACD provide a visible disconnecting means when performing maintenance and are commonly referred to as disconnects, pullouts or air conditioning switches
- ON/OFF control provided by a Pull-out handle
- Pull-out handle can be conveniently stored in the compartment in the Off position, helping to prevent the handle from being misplaced
- Protective shield cannot be removed until the pullout handle is removed, disconnecting the power
- 14 to 3 AWG copper/aluminum wire
