Cutler-Hammer Series TS3R9CV

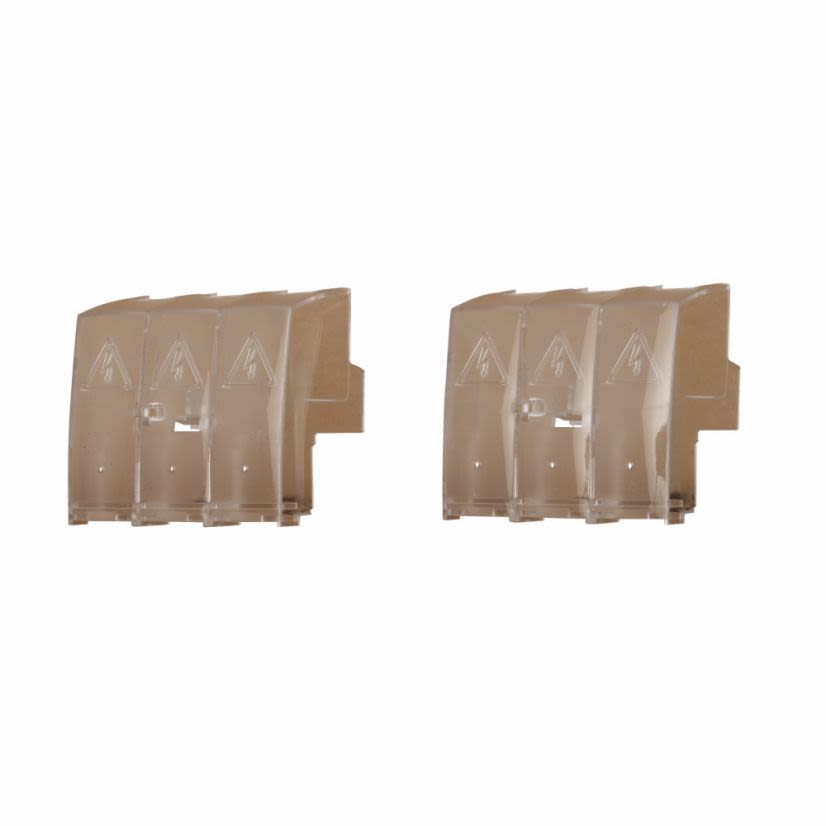

EATON TS3R9CV 10250T 3-Pole Heavy Duty Line/Load Side Rotary Disconnect Terminal Shroud, Switch Rating 30 to 100 A, For Use With R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator
Cutler-Hammer Series TS3R9CV
EATON TS3R9CV 10250T 3-Pole Heavy Duty Line/Load Side Rotary Disconnect Terminal Shroud, Switch Rating 30 to 100 A, For Use With R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch OperatorNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Rotary Disconnect Terminal Shroud, 3-Pole Heavy Duty Line/Load Side, Series: 10250T, 30 to 100 A Switch, For Use With: R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator, 88.9 mm L x 88.9 mm W x 50.8 mm H
Attributes
Documents
Applications
Warranty
Features
Attributes
Actuator TypeHandle
Connection TypeLoad Lug
Country of OriginFR
Dimensions88.9 mm L x 88.9 mm W x 50.8 mm H
FrameF
Frequency Rating50/60 Hz
Interrupt Rating65 kAIC at 480 VAC/100 kAIC at 240 VAC
ManufacturerEaton
Number of Poles3
Package TypeEACH
Series10250T
Size of Wire14 to 1/0 AWG
Suitable For Use WithR9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator
Temperature Rating40 deg C
Trip TypeElectronic LSI
Type3-Pole Heavy Duty Line/Load Side
Type / Style3-Pole Heavy Duty Line/Load Side
Applications
Ind Facilities & Factories - Facility, Power Distribution and Control, Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Warranty
1 year
Features
- Line and load protection against direct contact with terminals or connection parts
- Perforations allowing thermo graphic inspection
- -25 to 50 deg C temperature rating
