Cutler-Hammer Series CHU1S

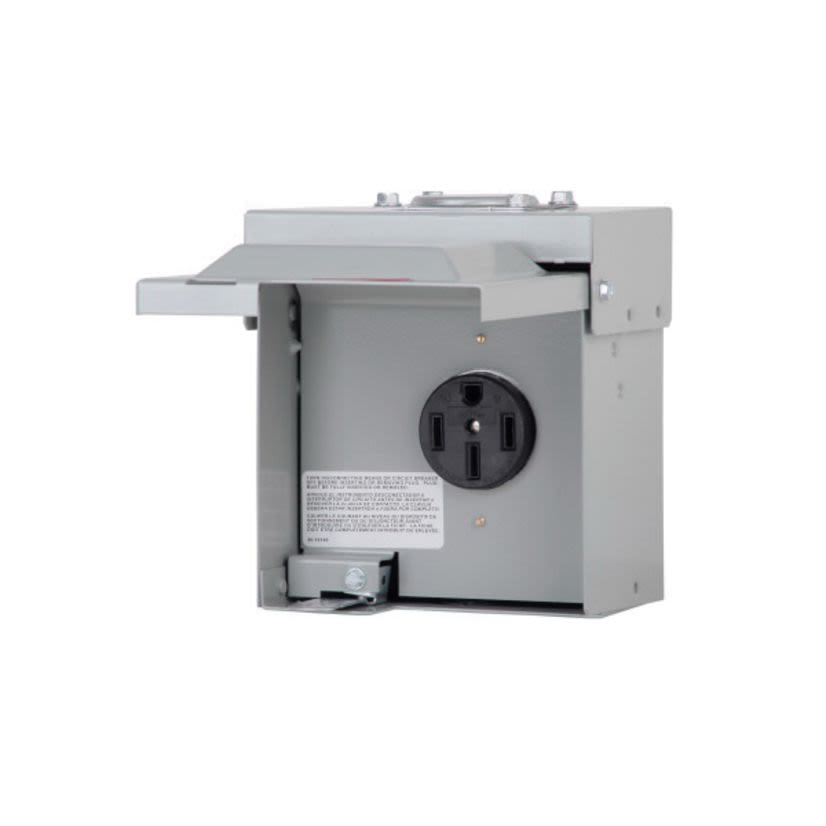

EATON CHU1S 4-Circuit Power Outlet Panel, 125/250 V AC, 50 A, 8 to 2/0 AWG Wire, Surface Mount
Cutler-Hammer Series CHU1S
EATON CHU1S 4-Circuit Power Outlet Panel, 125/250 V AC, 50 A, 8 to 2/0 AWG Wire, Surface MountNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CHU1S
Werner Part #2198437
UPC782116128174
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #CHU1S
Werner Part #2198437
UPC782116128174
Product Description
EATON Power Outlet Panel, 4-Circuit, 125/250 V AC, 50 A, NEMA 14-50R Receptacle, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Breaker TypeTHQL/THQP
Country of OriginUS
Dimensions26-7/16 in H x 14 in W x 3-3/4 in D
Enclosure Box SizeNEMA 7
Enclosure TypeNEMA 3R
Interrupt Rating22 kA
ManufacturerEaton
MaterialGalvanized Steel
Mounting TypeFlush
Number of Circuits16
Number of Poles1
Number of Spaces16
Package TypeEACH
SeriesTLM
Size of Wire6 AWG to 250 kcmil
Type4-Circuit
Type / Style4-Circuit Unmetered
Voltage125/250 VAC
Wiring Configuration3-Wire
Applications
For outdoor services, temporary power requirements at construction sites, RV parks, power distribution, electrical assemblies, panels and OEMs
Warranty
1 year
Features
- Door swings up and pushes in to lock into open position
- Pull out and push down to close door
- which makes for easy installation and maintenance
- Optional lighting feature provides extra safety and security onsite and during nighttime panel operations
- Units are factory wired and assembled
- Lower deadfront cover rotates 90 deg or can be removed for easy routing of incoming wires or receptacle changeouts
- One-piece case back simplifies installation
Specifications
Receptacle Type: NEMA 14-50R
